LEV 2661

EB PLUG LOCK 3PO 3WI L10-30P 30A125/250V

Page Loading...
LEVITON MFG CO.

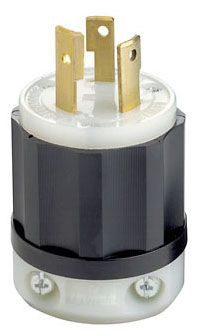

EB PLUG LOCK 3PO 3WI L10-30P 30A125/250V

Mouse over image to zoom, click to enlarge

Description:
EB PLUG LOCK 3PO 3WI L10-30P 30A125/250V

UPC:  07847780791

Part Number: 2661

UNSPSC: 39121402

Status:  UNKNOWN

Retail Price:  $58.40 / EA
Your Price:  $31.93 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 2661
Additional Information Temperature Rating -40 to 60 Deg C; Wire Size 16 to 8 AWG; Application Industrial
Amperage Rating 30 A
Application Industrial
Approval UL 498, CSA C22.2, NOM 057
Assembly Screws Zinc Plated Steel
Base Price 0.0000
Blades Contacts Material Solid Brass
Brand Name Leviton;Black & White[R]
Catalog Number 2661
Color Black/White;Black, White
Commerce Sector Construction Materials
Commodity Code 51300
Commodity Description Plugs,Conn,Inlets,Outlets,Lampholdr
Configuration L10-30P
Constructional Feature Abrasion Resistant, Chemical Resistant, Impact Resistant
Cord Size 0.385 to 0.93 Inch
CountryOfOrigin MX
Current Rating 30 Ampere
DDCATEGORY 574
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)
Families 574
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
Ground Type Non-Grounding
Image Location * Image
Industry ELX
InvoiceDescription EB PLUG LOCK 3PO 3WI L10-30P 30A125/250V;LKG PLUG L10-30P
Item Number 80791
Long Description LOCKING PLUG, NON-POLARIZED TYPE; SUPER TOUGH NYLON (BODY), SOLID BRASS (BLADE/CONTACT) MATERIAL; BLACK, WHITE COLOR; L10-30P CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2, NOM 057 APPROVAL; 125/250 V VOLTAGE RATING; 30 AMPERE CURRENT RATING; NON-GROUNDING
MSDS Form Number *
Material Super Tough Nylon (Body);Super Tough Nylon (Body), Solid Brass (Blade/Contact)
Mounting Cable
NEMA Rating L10-30P
Noun *
Number Of Poles 3
Number Of Wires 3
Product Description EB PLUG LOCK 3PO 3WI L10-30P 30A125/250V
Product Keywords WEBREADY
Product Name Electrical plugs
ProductLine LEV
Replacement Parts Material Thermoplastic (Back Cover);Nylon (Wire Module, Cord-Clamp, Clamp Insert);Brass (Terminal Screws)
Size 28 Dia x 2.47 H IN
Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13393);
Sub Brand Black & White
Type Locking Plug;Non-Polarized
UNSPSC 39121402
UPC 07847780791
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125/250 V
Wire Size 18-10 AWG (Terminal Accommodation);.520-.930 IN (Cord Grip Range)

Resources

CatalogNumber 2661
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1
