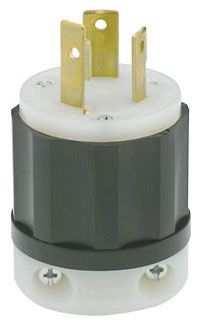

LEV 2681

EB PLUG LOCK 3PO 3WI 3PH L12-30P 30A480V

Page Loading...
LEVITON MFG CO.
EB PLUG LOCK 3PO 3WI 3PH L12-30P 30A480V

Mouse over image to zoom, click to enlarge

Description:
EB PLUG LOCK 3PO 3WI 3PH L12-30P 30A480V

UPC:  07847780789

Part Number: 2681

UNSPSC: 39121402

Status:  UNKNOWN

Retail Price:  $71.58 / EA
Your Price:  $39.14 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 2681
Additional Information Temperature Rating -40 to 60 Deg C; Wire Size 16 to 8 AWG; Application Industrial
Amperage Rating 30 A
Application Industrial
Approval UL 498, CSA C22.2, NOM 057
Base Price 0.0000
Brand Name Black & White[R]
Catalog Number 2681
Color Black, White
Commerce Sector Construction Materials
Commodity Code 51300
Commodity Description Plugs,Conn,Inlets,Outlets,Lampholdr
Configuration L12-30P
Connection Screwed Terminal
Constructional Feature Abrasion Resistant, Chemical Resistant, Impact Resistant
Cord Size 0.385 to 0.93 Inch
Cord Type S;SO;SOO;ST;STO;STOO;STOW-A;STW;STW-A
CountryOfOrigin MX
Current Rating 30 Ampere
DDCATEGORY 574
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL 94);Operating Temperature Range (-40 to +60 DEG C)
Families 574
Family Color Black;White
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
Ground Type Non-Grounding
Horsepower 10 HP
Image Location * Image
Industry ELX
InvoiceDescription EB PLUG LOCK 3PO 3WI 3PH L12-30P 30A480V;LKG PLUG L12-30P
Item Number 80789
Length 2.47 in
Long Description LOCKING PLUG, NON-POLARIZED TYPE; SUPER TOUGH NYLON (BODY), SOLID BRASS (BLADE/CONTACT) MATERIAL; BLACK, WHITE COLOR; L12-30P CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2, NOM 057 APPROVAL; 480 V 3-PHASE VOLTAGE RATING; 30 AMPERE CURRENT RATING
MSDS Form Number *
Material Impact Modified Nylon;Super Tough Nylon (Body), Solid Brass (Blade/Contact)
Mounting Cable
NEMA Rating L12-30P
Noun *
Number Of Poles 3
Number Of Wires 3
Phase 3
Product Description EB PLUG LOCK 3PO 3WI 3PH L12-30P 30A480V
Product Keywords WEBREADY
Product Name Electrical plugs
ProductLine LEV
Standard ANSI (C-73);CSA Certified (File LR-406);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13393);UL498 (File E13393)
Type Locking Plug;Non-Polarized
UNSPSC 39121402
UPC 07847780789
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 480;480 V 3-Phase
Wire Size 18-10

Resources

CatalogNumber 2681
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1

Time Zone
