LEV 2733

EB CONN LOCK 3PO 4WI 3PH L16-30R 30A480V

Page Loading...
LEVITON MFG CO.
EB CONN LOCK 3PO 4WI 3PH L16-30R 30A480V

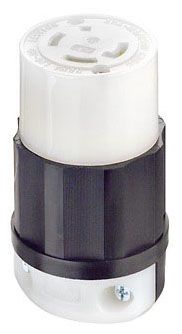

Mouse over image to zoom, click to enlarge

Description:
EB CONN LOCK 3PO 4WI 3PH L16-30R 30A480V

UPC:  07847780846

Part Number: 2733

UNSPSC: 39121402

Status:  UNKNOWN

Retail Price:  $141.39 / EA
Your Price:  $113.16 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 2733
Additional Information Applicable Standard ANSI C-73, NEMA WD-6; Temperature Rating -40 to 60 Deg C; Wire Size 14 to 8 AWG; Material Thermoplastic (Back Cover), Solid Brass (Blade/Contact), Zinc Plated Steel (Assembly Screw); Application Industrial
Amperage Rating 30 A
Application Industrial
Approval UL 498, CSA C22.2, NOM 057
Base Price 0.0000
Catalog Number 2733
Color Black, White
Commerce Sector Construction Materials
Commodity Code 51300
Commodity Description Plugs,Conn,Inlets,Outlets,Lampholdr
Configuration L16-30R
Connection Screwed Terminal
Constructional Feature Abrasion Resistant, Chemical Resistant, Impact Resistant
Cord Size 0.595 to 1.15 Inch
Cord Type S;SO;SOO;ST;STO;STOO;STOW-A;STW;STW-A
CountryOfOrigin MX
Current Rating 30 Ampere
DDCATEGORY 574
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL 94);Operating Temperature Range (-40 to +60 DEG C)
Families 574
Family Color Black;White
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
Ground Type Grounding
Horsepower 10 HP
Image Location * Image
Industry ELX
InvoiceDescription EB CONN LOCK 3PO 4WI 3PH L16-30R 30A480V;LKG CONN L16-30R
Item Number 80846
Length 3.78 in
Long Description LOCKING CONNECTOR, POLARIZED TYPE; IMPACT MODIFIED NYLON MATERIAL; BLACK, WHITE COLOR; L16-30R CONFIGURATION; 4 WIRE(S); UL 498, CSA C22.2, NOM 057 APPROVAL; 480 V (3-PHASE) VOLTAGE RATING; 30 AMPERE CURRENT RATING; GROUNDING; 3 POLE(S)
MSDS Form Number *
Material Impact Modified Nylon
Mounting Cable
NEMA Rating L16-30R
Noun *
Number Of Poles 3
Number Of Wires 4
Phase 3
Product Description EB CONN LOCK 3PO 4WI 3PH L16-30R 30A480V
Product Keywords WEBREADY
Product Name Electrical plugs
ProductLine LEV
Standard ANSI (C-73);CSA Certified (File LR-406);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13393);UL498 (File E13393)
Type Locking Connector;Polarized
UNSPSC 39121402
UPC 07847780846
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 480;480 V (3-Phase)
Wire Size 18-10

Resources

CatalogNumber 2733
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
