LEV 27W48

YL WGRD CONN LCK 2PO3WI L6-20R 20A250V

Page Loading...
LEVITON MFG CO.

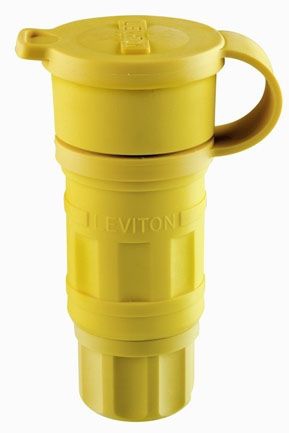

YL WGRD CONN LCK 2PO3WI L6-20R 20A250V

Mouse over image to zoom, click to enlarge

Description:
YL WGRD CONN LCK 2PO3WI L6-20R 20A250V

UPC:  07847796775

Part Number: 27W48

UNSPSC: 39121402

Status:  UNKNOWN

Retail Price:  $87.67 / EA
Your Price:  $70.70 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 27W48
Additional Information Size 5.52 Inch Length x 2.5 Inch Width; Blade/Contact Nickel Plated Brass; Assembly Screw Material 300 Stainless Steel; Operating Temperature -40 to 60 Deg C; Applicable Standard ANSI C-73, NEMA WD-6
Amperage Rating 20 A
Application Industrial
Approval UL 498, CSA C22.2, NOM 057
Base Price 0.0000
Brand Name Wetguard[R]
Catalog Number 27W48
Color Yellow
Commerce Sector Construction Materials
Commodity Code 51300
Commodity Description Plugs,Conn,Inlets,Outlets,Lampholdr
Configuration L6-20R
Connection Screwed Terminal
Constructional Feature Corrosion Resistant, Water Tight
Cord Size 0.375 to 0.875 Inch
Cord Type SO;SOO;ST;STO
CountryOfOrigin MX
Current Rating 20 Amp
DDCATEGORY 574
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL 94 (Wiring Module));Operating Temperature Range (-40 to +60 DEG C)
Families 574
Family Color Yellow
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
Ground Type Grounding
Image Location * Image
Industry ELX
InvoiceDescription YL WGRD CONN LCK 2PO3WI L6-20R 20A250V;NEMA L6-20R LKG CONN&CAP
Item Number 96775
Length 5.52 in
Long Description LOCKING CONNECTOR, POLARIZED TYPE; EPTR RUBBER BODY, NYLON INTERIOR/WIRE MODULE MATERIAL; YELLOW COLOR; L6-20R CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2, NOM 057 APPROVAL; 250 VOLT AC VOLTAGE RATING; 20 AMP CURRENT RATING; GROUNDING; 2 POLE(S)
MSDS Form Number *
Material TPV;EPTR Rubber Body, Nylon Interior/Wire Module
Mounting Cable
NEMA Rating L6-20R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description YL WGRD CONN LCK 2PO3WI L6-20R 20A250V
Product Keywords WEBREADY
Product Name Electrical plugs
ProductLine LEV
Standard ANSI (C-73);CSA (C22.2 No.42);NEMA (WD-1, WD-6);NOM Certified (057);UL (498)
Type Locking;Watertight Connector;Polarized
UNSPSC 39121402
UPC 07847796775
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 250;250 Volt AC
Wire Size 16-10

Resources

CatalogNumber 27W48
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
