LEV 29W75

YL WGRD CONN LCK 3P4W3PH L15-30P 30A250V

Page Loading...
LEVITON MFG CO.

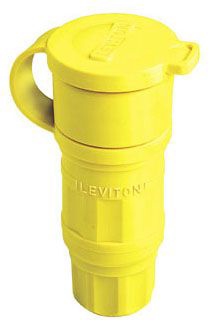

YL WGRD CONN LCK 3P4W3PH L15-30P 30A250V

Mouse over image to zoom, click to enlarge

Description:
YL WGRD CONN LCK 3P4W3PH L15-30P 30A250V

UPC:  07847796878

Part Number: 29W75

UNSPSC: 39121402

Status:  UNKNOWN

Retail Price:  $170.33 / EA
Your Price:  $137.35 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 29W75
Additional Information Applicable Standard ANSI C-73, NEMA WD-6; Operating Temperature -40 to 60 Deg C; Material Nylon (Interior), Electroless Nickel Coated Brass (Blade/Contact), Stainless Steel (Assembly Screw); Application Food Processing/Chemical Processing/Manufacturing/Ag
Amperage Rating 30 A
Application Industrial
Approval UL 498, CSA C22.2, NOM 057
Base Price 0.0000
Brand Name Wetguard[R]
Catalog Number 29W75
Color Yellow
Commerce Sector Construction Materials
Commodity Code 51300
Commodity Description Plugs,Conn,Inlets,Outlets,Lampholdr
Configuration L15-30R
Connection Screwed Terminal
Constructional Feature Chemical Resistant, Corrosion Resistant, Dusttight, Watertight, Wet Guard
Cord Size 0.625 to 1.125 Inch
Cord Type SO;SOO;ST;STO
CountryOfOrigin MX
Current Rating 30 Ampere
DDCATEGORY 574
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL 94 (Wiring Module));Operating Temperature Range (-40 to +60 DEG C)
Families 574
Family Color Yellow
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
Ground Type Grounding
Image Location * Image
Industry ELX
InvoiceDescription YL WGRD CONN LCK 3P4W3PH L15-30P 30A250V;NMA L15-30R LKG CONN&CAP
Item Number 96878
Length 5.52 in
Long Description LOCKING CONNECTOR, POLARIZED TYPE; SANTOPRENE TPV MATERIAL; YELLOW COLOR; L15-30R CONFIGURATION; 4 WIRE(S); UL 498, CSA C22.2, NOM 057 APPROVAL; 250 V 3-PHASE VOLTAGE RATING; 30 AMPERE CURRENT RATING; GROUNDING; 3 POLE(S)
MSDS Form Number *
Material TPV;Santoprene TPV
Model 29W
Mounting Cable
NEMA Rating L15-30R
Noun *
Number Of Poles 3
Number Of Wires 4
Phase 3
Product Description YL WGRD CONN LCK 3P4W3PH L15-30P 30A250V
Product Keywords WEBREADY
Product Name Electrical plugs
ProductLine LEV
Standard ANSI (C-73);CSA (C22.2 No.42);NEMA (WD-1, WD-6);NOM Certified (057);UL (498)
Type Locking;Watertight Connector;Polarized
UNSPSC 39121402
UPC 07847796878
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 250;250 V 3-Phase
Wire Size 12-8

Resources

CatalogNumber 29W75
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
