LEV 3032-2W

WH SW TGL 2PO 30A120/277VEC

Page Loading...
LEVITON MFG CO.
WH SW TGL 2PO 30A120/277VEC

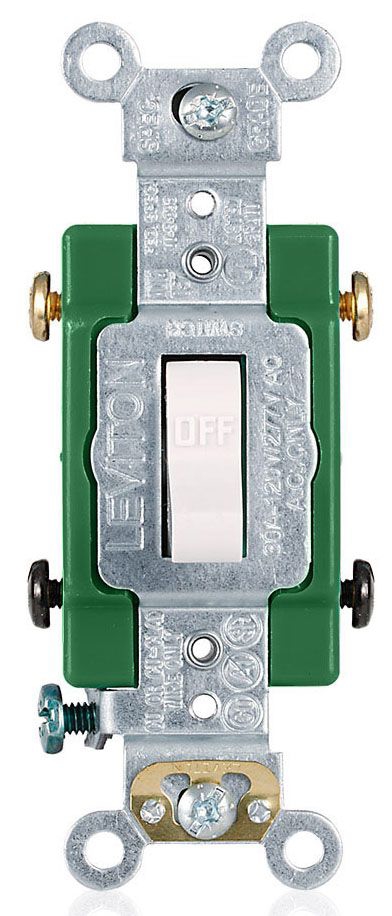

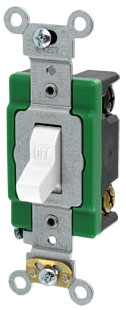

Mouse over image to zoom, click to enlarge

Description:
WH SW TGL 2PO 30A120/277VEC

UPC:  07847783680

Part Number: 3032-2W

UNSPSC: 39122211

Status:  UNKNOWN

Retail Price:  $87.40 / EA
Your Price:  $26.67 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 3032-2W
Action DP
Additional Information Strap Material Galvanized Steel; Contact Material Silver-Alloy; Wire Size 14 to 10 AWG (Back), 14 to 12 AWG (Side); Operating Temperature Rating -40 to 65 Deg C
Amperage Rating 30 A
Application Commercial;Industrial, Specification Grade
Approval UL 20, CSA C22.2, NOM 057
Base Price 0.0000
Catalog Number 3032-2W
Color White
Commerce Sector Construction Materials
Commodity Code 51100
Commodity Description General Purpose Switches
Connection Back Wired;Side Wired
CountryOfOrigin MX
Current Rating 30 Ampere
DDCATEGORY 572
Depth 13 in
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 572
Family Color White
Family Description General Purpose Switches
Height 46 in
Image Location * Image
Industry ELX
InvoiceDescription WH SW TGL 2PO 30A120/277VEC;DP 30A 277V WHT LK SW
Item Number 83680
Long Description AC SWITCH, TOGGLE TYPE; THERMOPLASTIC (BODY), POLYCARBONATE (TOGGLE) MATERIAL; 1.31 INCH W X 1.6 INCH D X 4.06 INCH H SIZE; WHITE COLOR; 2-POLE OPERATION TYPE; UL 20, CSA C22.2, NOM 057 APPROVAL; INDUSTRIAL, SPECIFICATION GRADE APPLICATION
MSDS Form Number *
Material Thermoplastic (Body), Polycarbonate (Toggle)
Model Series 3032
Mounting Box
Noun *
Number Of Poles 2
Operating Temperature Maximum 149 F
Operating Temperature Minimum -40 F
Operation Type 2-Pole
Power Rating 2 HP at 120/240/277 V
Product Description WH SW TGL 2PO 30A120/277VEC
Product Keywords WEBREADY
Product Name Toggle switch
ProductLine LEV
Size 1.31 Inch W x 1.6 Inch D x 4.06 Inch H
Standard ANSI (C-73);CSA C22.2 No. 111 (File 152105);NEMA (WD-1 and WD-6);NOM Certified (057);RoHS Compliant;UL Fed Spec WS896E (File E7458);UL Standard (UL 20)
Switch Type Toggle
Type Toggle Switch;Toggle
UNSPSC 39122211
UPC 07847783680
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120/277 VAC
Wall Plate Included No
Width 1.31 in
Wiring Back, Side
