LEVITON MFG CO.

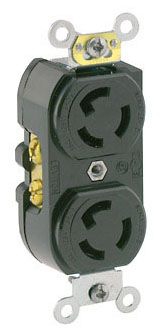

EB REC LOCK DUP 2PO 3WI L5-15 15A125V

Mouse over image to zoom, click to enlarge

Description:
EB REC LOCK DUP 2PO 3WI L5-15 15A125V

UPC:  07847777800

Part Number: 4700

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $59.42 / EA
Your Price:  $34.65 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 4700
Additional Information Size 4.06 Inch Length; Contact/Screw Material Brass; Strap Material Steel; Yoke Material Zinc-Plated Steel; Applicable Standard ANSI C-73, NEMA WD-6
Amperage Rating 15 A
Application Commercial
Approval UL 498, CSA C22.2, NOM 057, FS WC596
Base Price 0.0000
Brand Name Black & White [R]
Catalog Number 4700
Color Black
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration L5-15R
Connection Back Wired;Side Wired
CountryOfOrigin MX
Current Rating 15 Amp
DDCATEGORY 573
Depth 1.20 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Description Receptacles & Surge Protectors
Ground Type Grounding
Image Location * Image
Industry ELX
InvoiceDescription EB REC LOCK DUP 2PO 3WI L5-15 15A125V;LKG DPLX RCPT-NEMA L5-15R
Item Number 77800
Long Description LOCKING RECEPTACLE, DUPLEX LOCKING TYPE; NYLON BODY/FACE MATERIAL; BLACK COLOR; L5-15R CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2, NOM 057, FS WC596 APPROVAL; 125 VOLT AC VOLTAGE RATING; 15 AMP CURRENT RATING; GROUNDING; 2 POLE(S); BACK, SIDE WIRING
MSDS Form Number *
Material Nylon;Nylon Body/Face
Mounting Box
NEMA Rating L5-15R
Noun *
Number Of Poles 2
Number Of Wires 3
Product Description EB REC LOCK DUP 2PO 3WI L5-15 15A125V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No. 42 (File LR-406);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
Temperature Rating -40 to +60 DEG C
Type Duplex Receptacle;Duplex Locking
UNSPSC 39121406
UPC 07847777800
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125;125 Volt AC
Wire Size 18-10
Wiring Back, Side
