| Manufacturer Name | LEVITON MFG CO. |
| MfgPartNo | 49990-SST |
| Additional Information | Return Loss 55 Decibel; Applicable Standard ANSI/TIA-568-C.3, GR-326, ANSI/TIA-604-2, ISO 9001 |
| Application | Commercial |
| Base Price | 0.0000 |
| Brand Name | Fast-Cure[R] |
| Cable Type | 900 Micrometer Buffered, 3 Millimeter Jacketed |
| Catalog Number | 49990-SST |
| Color | Metal |
| Commerce Sector | Construction Materials |
| Commodity Code | 57170 |
| Commodity Description | Fiber-Optic Connectors |
| CountryOfOrigin | TW |
| DDCATEGORY | 1148 |
| Directory | CIS |
| Families | 1148 |
| Family Description | Fiber-Optic Connectors |
| Ferrule Material | Pre-Radiused Zirconia |
| Fiber Size | 0.10 IN |
| Fiber Type | Single Mode;Single Mode, OS2 |
| Image Location | * Image |
| Industry | ELX |
| Insertion Loss | 0.2 Decibel (Typical), 0.3 Decibel (Maximum) |
| Installation | Crimp-On, Anaerobic Adhesive |
| InvoiceDescription | CONN FCURE ST 2BT SM;SGLMOD FBR OPTIC CONN |
| Item Number | 08580 |

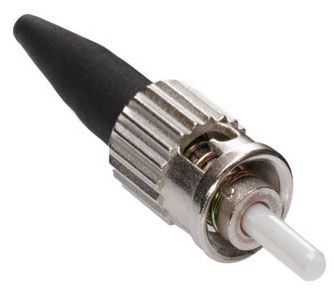

| Long Description | FIBER OPTIC CONNECTOR, METAL COLOR; CRIMP-ON, ANAEROBIC ADHESIVE INSTALLATION; 900 MICROMETER BUFFERED, 3 MILLIMETER JACKETED CABLE TYPE; -40 TO 85 DEG C OPERATING TEMPERATURE; ST STYLE; SINGLE MODE, OS2 FIBER TYPE; PRE-RADIUSED ZIRCONIA FERRULE MATERIAL |
| MSDS Form Number | * |
| Material | Metal |
| Noun | * |
| Operating Temperature | -40 to 85 Deg C |
| Product Description | CONN FCURE ST 2BT SM |
| Product Keywords | WEBREADY |
| Product Name | Fiber optic connector |
| ProductLine | LEV |
| Return Loss | >55 DB |
| Size | 2.35 L x 0.38 W IN |
| Special Features | Most Robust Connection, Ideal for Inside and Outside Plant Applications, Anaerobic Adhesive-Style, Field-Installable Connectors, Made in Taiwan |
| Standard | ANSI (TIA-568-C.3);ANSI (TIA-604-2) |
| Style | ST |
| Temperature Rating | -40 to +85 DEG C |
| Type | ST Fast Cure |
| UNSPSC | 43223310 |
| UPC | 07847708580 |
| Vendor Name | LEVITON MFG CO. |
| Vendor Number | 078477 |
| Vendor Short Name | LEV |
