LEV 5252-W

WH IND GRD REC BACK/SIDE WIRED 5-15R

Page Loading...
LEVITON MFG CO.
WH IND GRD REC BACK/SIDE WIRED 5-15R

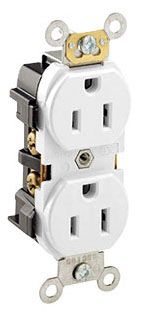

Mouse over image to zoom, click to enlarge

Description:
WH IND GRD REC BACK/SIDE WIRED 5-15R

UPC:  07847781956

Part Number: 5252-W

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $24.21 / EA
Your Price:  $8.61 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5252-W
Additional Information Applicable Standard ANSI C73, NEMA WD-6; Power Rating 1/2 HP; Contact Material Phosphor Bronze; Strap Material Galvanized Steel; Temperature Rating -40 to 60 Deg C
Amperage Rating 15 A
Application Commercial
Approval UL 498, CSA C22.2, NOM 057
Base Price 0.0000
Catalog Number 5252-W
Color White
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 5-15R
Connection Back and Side Wired
Constructional Feature Impact Resistant
CountryOfOrigin MX
Current Rating 15 Ampere
DDCATEGORY 573
Depth 1.12 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Color White
Family Description Receptacles & Surge Protectors
Grade Industrial, Specification, Heavy Duty
Ground Type Grounding
Height 46 in
Image Location * Image
Industry ELX
InvoiceDescription WH IND GRD REC BACK/SIDE WIRED 5-15R;WHT DPLX RCPT-NEMA5-15R
Item Number 81956
Long Description STRAIGHT BLADE RECEPTACLE, DUPLEX TYPE; THERMOPLASTIC NYLON MATERIAL; WHITE COLOR; 5-15R CONFIGURATION; 3 WIRE(S); INDUSTRIAL, SPECIFICATION, HEAVY DUTY GRADE; UL 498, CSA C22.2, NOM 057 APPROVAL; 125 V VOLTAGE RATING; 15 AMPERE CURRENT RATING; GROUNDING
MSDS Form Number *
Material Thermoplastic Nylon
Material Quality Thermoplastic
Model 5252
Mounting Wallbox
NEMA Rating 5-15R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description WH IND GRD REC BACK/SIDE WIRED 5-15R
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
Temperature Rating Maximum 140 F
Temperature Rating Minimum -40 F
Type Duplex Outlet;Straight Blade;Duplex
UNSPSC 39121406
UPC 07847781956
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125;125 V
Width 1.55 in
Wire Size 14-10
Wiring Back, Side

Resources

CatalogNumber 5252-W
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
