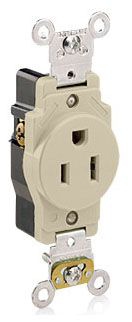

LEV 5261-I

IV REC SGL 2PO 3WI 15A125V

Page Loading...
LEVITON MFG CO.
IV REC SGL 2PO 3WI 15A125V

Mouse over image to zoom, click to enlarge

Description:
IV REC SGL 2PO 3WI 15A125V

UPC:  07847713129

Part Number: 5261-I

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $32.59 / EA
Your Price:  $11.59 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5261-I
Additional Information Applicable Standard ANSI C73, NEMA WD-6; Power Rating 1/2 HP; Contact Material Brass; Strap Material Zinc Plated Steel; Temperature Rating -40 to 60 Deg C
Amperage Rating 15 A
Application Commercial
Approval UL 498, CSA C22.2, NOM 057
Base Price 0.0000
Catalog Number 5261-I
Color Ivory
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 5-15R
Connection Back and Side Wired
Constructional Feature Impact Resistant
CountryOfOrigin MX
Current Rating 15 Ampere
DDCATEGORY 573
Decorative Color Ivory
Depth 16 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Description Receptacles & Surge Protectors
Grade Industrial, Specification, Heavy Duty
Ground Type Grounding
Height 46 in
Image Location * Image
Industry ELX
InvoiceDescription IV REC SGL 2PO 3WI 15A125V;IV SGL RCPT-NEMA5-15R
Item Number 13129
Long Description STRAIGHT BLADE RECEPTACLE, SINGLE TYPE; THERMOPLASTIC NYLON MATERIAL; IVORY COLOR; 5-15R CONFIGURATION; 3 WIRE(S); INDUSTRIAL, SPECIFICATION, HEAVY DUTY GRADE; UL 498, CSA C22.2, NOM 057 APPROVAL; 125 V VOLTAGE RATING; 15 AMPERE CURRENT RATING; GROUNDING
MSDS Form Number *
Material Thermoplastic Nylon
Material Quality Thermoplastic
Model 5261
Mounting Wallbox
NEMA Rating 5-15R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description IV REC SGL 2PO 3WI 15A125V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
Temperature Rating Maximum 140 F
Temperature Rating Minimum -40 F
Type Single Outlet;Straight Blade;Single
UNSPSC 39121406
UPC 07847713129
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125;125 V
Width 1.31 in
Wire Size 14-10
Wiring Back, Side

Resources

CatalogNumber 5261-I
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
