LEV 5262-IG

OR REC DUP IG 2PO 3WI 5-15R 15A125V

Page Loading...
LEVITON MFG CO.
OR REC DUP IG 2PO 3WI 5-15R 15A125V

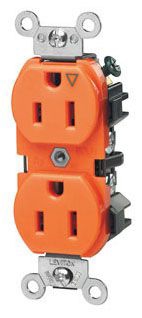

Mouse over image to zoom, click to enlarge

Description:
OR REC DUP IG 2PO 3WI 5-15R 15A125V

UPC:  07847705244

Part Number: 5262-IG

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $70.46 / EA
Your Price:  $17.34 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5262-IG
Additional Information Overall Dimension 1.33 Inch W x 1.12 Inch D x 4.06 Inch H; Strap Material Galvanized Steel; Contact Material Brass; Power Rating 1/2 HP; Operating Temperature -40 to 60 Deg C; Applicable Standard ANSI C-73
Amperage Rating 15 A
Application Industrial
Approval UL 498/94, CSA C22.2, NOM 057
Base Price 0.0000
Catalog Number 5262-IG
Color Orange
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 5-15R
Connection Back and Side Wired
Constructional Feature Impact Resistant
CountryOfOrigin MX
Current Rating 15 Ampere
DDCATEGORY 573
Depth 1.12 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Color Orange
Family Description Receptacles & Surge Protectors
Grade Industrial, Specification, Heavy Duty
Ground Type Isolated Grounding
Height 46 in
Image Location * Image
Industry ELX
InvoiceDescription OR REC DUP IG 2PO 3WI 5-15R 15A125V;ISO GRD DPLXRCPT-N5-15R
Item Number 05244
Long Description STRAIGHT BLADE RECEPTACLE, DUPLEX TYPE; THERMOPLASTIC NYLON (BODY/FACE) MATERIAL; ORANGE COLOR; 5-15R CONFIGURATION; 3 WIRE(S); INDUSTRIAL, SPECIFICATION, HEAVY DUTY GRADE; UL 498/94, CSA C22.2, NOM 057 APPROVAL; 125 V VOLTAGE RATING
MSDS Form Number *
Material Thermoplastic Nylon (Body/Face)
Material Quality Thermoplastic
Mounting Wallbox
NEMA Rating 5-15R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description OR REC DUP IG 2PO 3WI 5-15R 15A125V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
Temperature Rating Maximum 140 F
Temperature Rating Minimum -40 F
Type Duplex Outlet;Straight Blade;Duplex
UNSPSC 39121406
UPC 07847705244
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125;125 V
Width 1.33 in
Wire Size 14-10
Wiring Back, Side

Resources

CatalogNumber 5262-IG
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
