LEV 5266-CG

GY PLUG 2PO 3WI 5-15P ROHS 15A125V.

Page Loading...
LEVITON MFG CO.
GY PLUG 2PO 3WI 5-15P ROHS 15A125V.

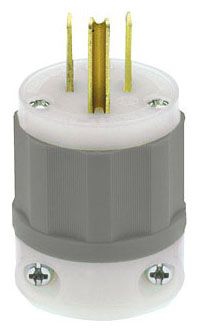

Mouse over image to zoom, click to enlarge

Description:
GY PLUG 2PO 3WI 5-15P ROHS 15A125V.

UPC:  07847779523

Part Number: 5266-CG

UNSPSC: 39121402

Status:  UNKNOWN

Retail Price:  $24.96 / EA
Your Price:  $14.56 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5266-CG
Additional Information Blade Material Solid Brass; Temperature Rating -40 to 60 Deg C
Amperage Rating 15 A
Application Industrial
Approval UL 498, CSA C22.2, NOM 057
Assembly Screws Zinc Plated Steel
Base Price 0.0000
Blades Contacts Material Solid Brass
Brand Name Black & White[R]
Catalog Number 5266-CG
Color Gray, White
Commerce Sector Construction Materials
Commodity Code 51300
Commodity Description Plugs,Conn,Inlets,Outlets,Lampholdr
Configuration 5-15P
Constructional Feature Impact/Sunlight/Chemical Resistant
Cord Size 0.245 to 0.7 Inch
CountryOfOrigin MX
Current Rating 15 Ampere
DDCATEGORY 574
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)
Families 574
Family Color Gray;White
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
Grade Industrial
Ground Type Grounding
Image Location * Image
Industry ELX
InvoiceDescription GY PLUG 2PO 3WI 5-15P ROHS 15A125V.;GRY PLUG-N5-15P
Item Number 79523
Length 1.98 in
Long Description STRAIGHT BLADE PLUG, POLARIZED TYPE; IMPACT MODIFIED NYLON (BODY), THERMOPLASTIC (BACK COVER) MATERIAL; GRAY, WHITE COLOR; 5-15P CONFIGURATION; 3 WIRE(S); INDUSTRIAL GRADE; UL 498, CSA C22.2, NOM 057 APPROVAL; 125 V VOLTAGE RATING
MSDS Form Number *
Material Super Tough Nylon (Body);Impact Modified Nylon (Body), Thermoplastic (Back Cover)
Model 5266
Mounting Cable
NEMA Rating 5-15P
Noun *
Number Of Poles 2
Number Of Wires 3
Product Description GY PLUG 2PO 3WI 5-15P ROHS 15A125V.
Product Keywords WEBREADY
Product Name Electrical plugs
ProductLine LEV
Replacement Parts Material Brass (Terminal Screws);Nylon (Wire Module, Cord-Clamp, Clamp Insert);Thermoplastic (Back Cover)
Standard ANSI (C-73);CSA C22.2 No. 42 (File LR-406);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13393);UL Fed Spec WC-598;UL Listed 498 (File E13399)
Type Straight Blade Plug;Polarized
UNSPSC 39121402
UPC 07847779523
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125;125 V
Wire Size 18-10;.250-.685

Resources

CatalogNumber 5266-CG
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
