LEV 5269-CY

YL CONN 2PO 3WI 5-15R 15A125V.

Page Loading...
LEVITON MFG CO.

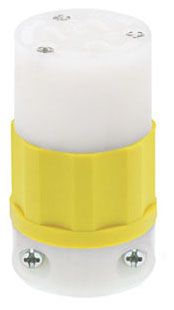

YL CONN 2PO 3WI 5-15R 15A125V.

Mouse over image to zoom, click to enlarge

Description:
YL CONN 2PO 3WI 5-15R 15A125V.

UPC:  07847779532

Part Number: 5269-CY

UNSPSC: 39121402

Status:  UNKNOWN

Retail Price:  $45.04 / EA
Your Price:  $26.27 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5269-CY
Additional Information Blade/Contact Material Brass; Assembly Screw Material Zinc Plated Steel; Temperature Rating -40 to 60 Deg C
Amperage Rating 15 A
Application Industrial
Approval UL 498, CSA C22.2, NOM 057
Assembly Screws Zinc Plated Steel
Base Price 0.0000
Blades Contacts Material Solid Brass
Brand Name Black & White[R]
Catalog Number 5269-CY
Color Yellow, White
Commerce Sector Construction Materials
Commodity Code 51300
Commodity Description Plugs,Conn,Inlets,Outlets,Lampholdr
Configuration 5-15R
Constructional Feature Impact/Chemical/Corrosion Resistant
Cord Size 0.245 to 0.7 Inch
CountryOfOrigin MX
Current Rating 15 Ampere
DDCATEGORY 574
Decorative Color Yellow-White
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)
Families 574
Family Color White
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
Grade Industrial
Ground Type Grounding
Image Location * Image
Industry ELX
InvoiceDescription YL CONN 2PO 3WI 5-15R 15A125V.;YEL CONN-N5-15R
Item Number 79532
Length 2.76 in
Long Description STRAIGHT BLADE CONNECTOR, POLARIZED TYPE; SUPER TOUGH NYLON (BODY), THERMOPLASTIC (BACK COVER) MATERIAL; YELLOW, WHITE COLOR; 5-15R CONFIGURATION; 3 WIRE(S); INDUSTRIAL GRADE; UL 498, CSA C22.2, NOM 057 APPROVAL; 125 V VOLTAGE RATING
MSDS Form Number *
Material Super Tough Nylon (Body);Super Tough Nylon (Body), Thermoplastic (Back Cover)
Model 5269
Mounting Cable
NEMA Rating 5-15R
Noun *
Number Of Poles 2
Number Of Wires 3
Product Description YL CONN 2PO 3WI 5-15R 15A125V.
Product Keywords WEBREADY
Product Name Electrical plugs
ProductLine LEV
Replacement Parts Material Brass (Terminal Screws);Nylon (Wire Module, Cord-Clamp, Clamp Insert);Thermoplastic (Back Cover)
Standard ANSI (C-73);CSA C22.2 No. 42 (File LR-406);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13393);UL Fed Spec WC-598;UL Listed 498 (File E13399)
Type Connector;Polarized
UNSPSC 39121402
UPC 07847779532
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125;125 V
Wire Size 18-10;.250-.685

Resources

CatalogNumber 5269-CY
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
