LEV 5334-I

IV COMBI 2SW SP 20A120/277V

Page Loading...
LEVITON MFG CO.
IV COMBI 2SW SP 20A120/277V

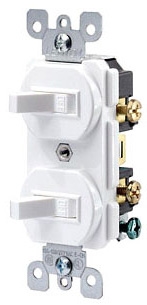

Mouse over image to zoom, click to enlarge

Description:
IV COMBI 2SW SP 20A120/277V

UPC:  07847723340

Part Number: 5334-I

UNSPSC: 39122231

Status:  UNKNOWN

Retail Price:  $53.05 / EA
Log In for Pricing



Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5334-I
Actuator Toggle
Additional Information Applicable Standard ANSI; Actuator Material Thermoplastic; Strap Material Steel; Power Rating 1 HP at 120 V; Temperature Rating -40 to 65 Deg C
Amperage Rating 20 AMP
Application Commercial
Approval UL 20, CSA C22.2, NOM 057
Catalog Number 5334-I
Color Ivory
Commerce Sector Construction Materials
Commodity Code 51600
Commodity Description Combination Devices
Connection Side Wired
Contact Rating 120/277 VAC;20 AMP
CountryOfOrigin MX
DDCATEGORY 577
Directory CIS
Environmental Conditions Flammability (Rated UL 94 V-2)
Families 577
Family Description Combination Devices
Image Location * Image
Industry ELX
InvoiceDescription IV COMBI 2SW SP 20A120/277V;COMB SP20A 2SW5-15R
Item Number 23340
Long Description COMBINATION SWITCH, DUPLEX TYPE; THERMOPLASTIC MATERIAL; IVORY COLOR; UL 20, CSA C22.2, NOM 057 APPROVAL; COMMERCIAL APPLICATION; SIDE WIRING; NO WALL PLATE INCLUDED; 120/277 VAC 20 AMPERE 1-POLE WITH NON-GROUNDING TOGGLE SWITCH 1 TYPE
MSDS Form Number *
Material Thermoplastic
Model 5334
Mounting Wallplate
NEMA Rating 5-20R
Noun *
Number Of Poles 1
Operating Temperature -40 to +120 DEG C
Product Description IV COMBI 2SW SP 20A120/277V
Product Keywords WEBREADY
Product Name Combination device switch
ProductLine LEV
Replacement Parts Material Steel (Strap);Thermoplastic (Actuator)
Size 4.20 H x 1.62 W x 16 D IN
Special Features Ac Quiet Switches have Silver-Cadmium Oxide Contacts and Receptacles have Double -wire Contacts for Maximum Conductivity, Terminal Screw Accept Up to No 12 AWG Copper or Copper-Clad Wire, Fits Standard Wallboxes, Break-Off Tabs on Devices with Switches Permit Conversion to Separate Feeds, Limited Two-Year Warranty, Non-Grounding, Made in Mexico
Standard UL Listed (E-7458);CSA Certified (LR-3413);NOM Certified (057);NEMA (WD-1, WD-6);ANSI (C-73);UL 20;CSA Certified (C222.2 No.111 152105)
Switch 1 Type 120/277 VAC 20 Ampere 1-Pole with Non-Grounding Toggle
Switch 2 Type 120/277 VAC 20 Ampere 1-Pole with Non-Grounding Toggle
Type Duplex Style;Duplex
UNSPSC 39122231
UPC 07847723340
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120/277 VAC
Wall Plate Included No
Wiring Side

Resources

CatalogNumber 5334-I
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
