LEV 5342

BR 20A 125V DUPLEX OUTLET SELF GROUNDING

Page Loading...
LEVITON MFG CO.

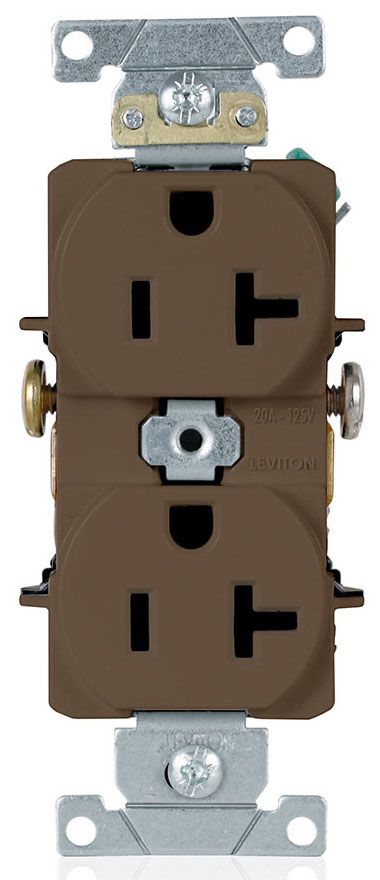

BR 20A 125V DUPLEX OUTLET SELF GROUNDING

Mouse over image to zoom, click to enlarge

Description:
BR 20A 125V DUPLEX OUTLET SELF GROUNDING

UPC:  07847778814

Part Number: 5342

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $24.79 / EA
Your Price:  $8.82 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5342
Additional Information Applicable Standard ANSI C73, NEMA WD-6; Power Rating 1 HP; Contact Material Phosphor Bronze; Strap Material Galvanized Steel; Temperature Rating -40 to 60 Deg C
Amperage Rating 20 A
Application Commercial
Approval UL 498, CSA C22.2, NOM 057
Base Price 0.0000
Brand Name Traditional
Catalog Number 5342
Color Brown
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 5-20R
Connection Side Wired
Constructional Feature Impact Resistant
CountryOfOrigin MX
Current Rating 20 Ampere
DDCATEGORY 573
Depth 1.12 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Color Brown
Family Description Receptacles & Surge Protectors
Grade Industrial, Specification, Heavy Duty
Ground Type Grounding
Height 46 in
Image Location * Image
Industry ELX
InvoiceDescription BR 20A 125V DUPLEX OUTLET SELF GROUNDING;BRN DPLX RCPT-NEMA5-20R
Item Number 78814
Long Description STRAIGHT BLADE RECEPTACLE, DUPLEX TYPE; THERMOPLASTIC NYLON MATERIAL; BROWN COLOR; 5-20R CONFIGURATION; 3 WIRE(S); INDUSTRIAL, SPECIFICATION, HEAVY DUTY GRADE; UL 498, CSA C22.2, NOM 057 APPROVAL; 125 V VOLTAGE RATING; 20 AMPERE CURRENT RATING; GROUNDING
MSDS Form Number *
Material Thermoplastic Nylon
Material Quality Polypropylene;Thermoplastic
Model 5342
Mounting Wallbox
NEMA Rating 5-20R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description BR 20A 125V DUPLEX OUTLET SELF GROUNDING
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
Temperature Rating Maximum 140 F
Temperature Rating Minimum -40 F
Type Duplex Outlet;Straight Blade;Duplex
UNSPSC 39121406
UPC 07847778814
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125;125 V
Width 1.55 in
Wire Size 14-10
Wiring Side

Resources

CatalogNumber 5342
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
