LEVITON MFG CO.

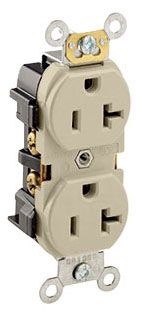

IV REC DUP TSLOT 2PO 3WI 20A125V

Mouse over image to zoom, click to enlarge

Description:
IV REC DUP TSLOT 2PO 3WI 20A125V

UPC:  07847781961

Part Number: 5352-I

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $33.00 / EA
Your Price:  $11.74 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5352-I
Additional Information APPLICABLE STANDARD ANSI, NEMA WD 1, NEMA WD 6; OPERATING TEMPERATURE -40 TO 60 DEG C
Amperage Rating 20 A
Application Commercial
Approval UL, CSA C22.2
Base Price 0.0000
Catalog Number 5352-I
Color Ivory
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 5-20R
Connection Back and Side Wired
CountryOfOrigin MX
Current Rating 20 Amp
DDCATEGORY 573
Depth 1.12 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Description Receptacles & Surge Protectors
Grade Heavy Duty, Industrial, Specification
Ground Type Self-Grounding
Image Location * Image
Industry ELX
InvoiceDescription IV REC DUP TSLOT 2PO 3WI 20A125V;IV DPLX RCPT-NEMA5-20R
Item Number 81961
Long Description STRAIGHT BLADE RECEPTACLE, DUPLEX TYPE; THERMOPLASTIC NYLON (BODY/FACE) MATERIAL; IVORY COLOR; 5-20R CONFIGURATION; 3 WIRE(S); HEAVY DUTY, INDUSTRIAL, SPECIFICATION GRADE; UL, CSA C22.2 APPROVAL; 125 VOLT VOLTAGE RATING; 20 AMP CURRENT RATING
MSDS Form Number *
Material Nylon;Thermoplastic Nylon (Body/Face)
Mounting Wallbox
NEMA Rating 5-20R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description IV REC DUP TSLOT 2PO 3WI 20A125V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
Temperature Rating -40 to +60 DEG C
Type Duplex Outlet;Straight Blade;Duplex
UNSPSC 39121406
UPC 07847781961
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125;125 Volt
Wire Size 14-10
Wiring Back, Side

Resources

CatalogNumber 5352-I
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
