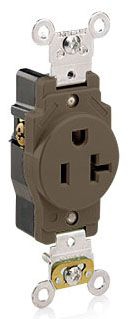

LEV 5361

BR REC SGL 2PO 3WI 20A125V

Page Loading...
LEVITON MFG CO.
BR REC SGL 2PO 3WI 20A125V

Mouse over image to zoom, click to enlarge

Description:
BR REC SGL 2PO 3WI 20A125V

UPC:  07847749870

Part Number: 5361

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $36.56 / EA
Your Price:  $13.00 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5361
Additional Information Applicable Standard ANSI C73, NEMA WD-6; Power Rating 1 HP; Contact Material Brass; Strap Material Zinc Plated Steel; Temperature Rating -40 to 60 Deg C
Amperage Rating 20 A
Application Commercial
Approval UL 498, CSA C22.2, NOM 057
Base Price 0.0000
Brand Name Traditional
Catalog Number 5361
Color Brown
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 5-20R
Connection Back and Side Wired
Constructional Feature Impact Resistant
CountryOfOrigin MX
Current Rating 20 Ampere
DDCATEGORY 573
Depth 1.12 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Color Brown
Family Description Receptacles & Surge Protectors
Grade Industrial, Specification, Heavy Duty
Ground Type Self Grounding
Height 46 in
Image Location * Image
Industry ELX
InvoiceDescription BR REC SGL 2PO 3WI 20A125V;BRN SGL RCPT-NEMA5-20R
Item Number 49870
Long Description STRAIGHT BLADE RECEPTACLE, SINGLE TYPE; THERMOPLASTIC NYLON MATERIAL; BROWN COLOR; 5-20R CONFIGURATION; 3 WIRE(S); INDUSTRIAL, SPECIFICATION, HEAVY DUTY GRADE; UL 498, CSA C22.2, NOM 057 APPROVAL; 125 V VOLTAGE RATING; 20 AMPERE CURRENT RATING
MSDS Form Number *
Material Thermoplastic Nylon
Material Quality Santoprene TPV
Model 5361
Mounting Wallbox
NEMA Rating 5-20R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description BR REC SGL 2PO 3WI 20A125V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No. 42 (File LR-406);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498
Temperature Rating Maximum 140 F
Temperature Rating Minimum -40 F
Type Single Outlet;Straight Blade;Single
UNSPSC 39121406
UPC 07847749870
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125;125 V
Width 1.55 in
Wire Size 14-10
Wiring Back, Side

Resources

CatalogNumber 5361
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
