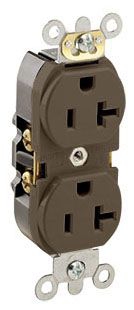

LEV 5362-S

DUPLX RECEPT/WAS 061

Page Loading...
LEVITON MFG CO.
DUPLX RECEPT/WAS 061

Mouse over image to zoom, click to enlarge

Description:
DUPLX RECEPT/WAS 061

UPC:  07847714695

Part Number: 5362-S

UNSPSC: 39121406

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5362-S
Additional Information APPLICABLE STANDARD ANSI, NEMA WD 1, NEMA WD 6; OPERATING TEMPERATURE -40 TO 60 DEG C
Amperage Rating 20 A
Application Commercial
Approval UL, CSA C22.2
Base Price 0.0000
Brand Name Leviton
Catalog Number 5362-S
Color Brown
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 5-20R
Connection Back and Side Wired
CountryOfOrigin MX
Current Rating 20 Amp
DDCATEGORY 573
Dielectric Strength 2000 (Min.) V
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Description Receptacles & Surge Protectors
Grade Heavy Duty, Industrial, Hospital, Specification
Ground Type Self-Grounding
Image Location * Image
Industry ELX
InvoiceDescription DUPLX RECEPT/WAS 061;DUPLEX 20A/125V
Item Number 14695
Long Description STRAIGHT BLADE RECEPTACLE, DUPLEX TYPE; NYLON (BODY/FACE) MATERIAL; BROWN COLOR; 5-20R CONFIGURATION; 3 WIRE(S); HEAVY DUTY, INDUSTRIAL, HOSPITAL, SPECIFICATION GRADE; UL, CSA C22.2 APPROVAL; 125 VOLT VOLTAGE RATING; 20 AMP CURRENT RATING; SELF-GROUNDING
MSDS Form Number *
Material Thermoplastic;Nylon (Body/Face)
Mounting Wall Box
NEMA Rating 5-20R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description DUPLX RECEPT/WAS 061
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Size 46 H x 1.53 W x 1.11 D IN
Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
Temperature Rating -40 to +60 DEG C
Type Straight Blade;Duplex Outlet;Duplex
UNSPSC 39121406
UPC 07847714695
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125 V;125 Volt
Wire Size 14-10 AWG
Wiring Back, Side
