LEV 5362-SW

WH REC DUP NARROW 2PO 3WI 20A125V

Page Loading...
LEVITON MFG CO.

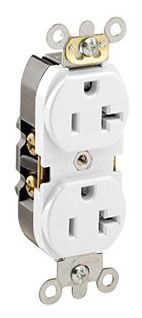

WH REC DUP NARROW 2PO 3WI 20A125V

Mouse over image to zoom, click to enlarge

Description:
WH REC DUP NARROW 2PO 3WI 20A125V

UPC:  07847714115

Part Number: 5362-SW

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $46.82 / EA
Your Price:  $16.65 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5362-SW
Additional Information Applicable Standard ANSI C73, NEMA WD-6; Power Rating 1 HP; Material Brass (Contact), Galvanized Steel (Strap); Temperature Rating -40 to 60 Deg C
Amperage Rating 20 A
Application Commercial
Approval UL 498, CSA C22.2, NOM
Base Price 0.0000
Catalog Number 5362-SW
Color White
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 5-20R
Connection Back and Side Wired
Constructional Feature Impact Resistant
CountryOfOrigin MX
Current Rating 20 Ampere
DDCATEGORY 573
Depth 19 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Color White
Family Description Receptacles & Surge Protectors
Grade Industrial, Specification, Extra Heavy Duty
Ground Type Self-Grounding
Height 46 in
Image Location * Image
Industry ELX
InvoiceDescription WH REC DUP NARROW 2PO 3WI 20A125V;WHT 20A/125V DUPLX RCPT
Item Number 14115
Long Description STRAIGHT BLADE RECEPTACLE, DUPLEX, NARROW TYPE; THERMOPLASTIC NYLON (BODY/FACE) MATERIAL; WHITE COLOR; 5-20R CONFIGURATION; 3 WIRE(S); INDUSTRIAL, SPECIFICATION, EXTRA HEAVY DUTY GRADE; UL 498, CSA C22.2, NOM APPROVAL; 125 V VOLTAGE RATING
MSDS Form Number *
Material Thermoplastic Nylon (Body/Face)
Material Quality Thermoplastic
Model Series 5362-S
Mounting Wallbox
NEMA Rating 5-20R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description WH REC DUP NARROW 2PO 3WI 20A125V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
Temperature Rating Maximum 140 F
Temperature Rating Minimum -40 F
Type Duplex Outlet;Straight Blade;Duplex, Narrow
UNSPSC 39121406
UPC 07847714115
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125;125 V
Width 1.33 in
Wire Size 14-10
Wiring Back, Side

Resources

CatalogNumber 5362-SW
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
