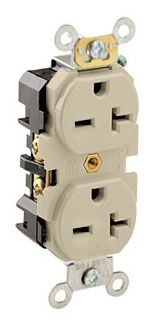

LEV 5462-I

IV REC DUP 2PO 3WI 20A250V

Page Loading...
LEVITON MFG CO.
IV REC DUP 2PO 3WI 20A250V

Mouse over image to zoom, click to enlarge

Description:
IV REC DUP 2PO 3WI 20A250V

UPC:  07847781937

Part Number: 5462-I

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $54.94 / EA
Your Price:  $19.54 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5462-I
Additional Information Applicable Standard ANSI C73, NEMA WD-6; Power Rating 2 HP; Contact Material Brass; Strap Material Galvanized Steel; Temperature Rating -40 to 60 Deg C
Amperage Rating 20 A
Application Commercial
Approval UL 498, CSA C22.2, NOM 057
Base Price 0.0000
Catalog Number 5462-I
Color Ivory
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 6-20R
Connection Back and Side Wired
Constructional Feature Impact Resistant
CountryOfOrigin MX
Current Rating 20 Ampere
DDCATEGORY 573
Depth 1.11 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Description Receptacles & Surge Protectors
Grade Industrial, Specification, Extra Heavy Duty
Ground Type Grounding
Image Location * Image
Industry ELX
InvoiceDescription IV REC DUP 2PO 3WI 20A250V;IV DPLX RCPT-NEMA6-20R
Item Number 81937
Long Description STRAIGHT BLADE RECEPTACLE, DUPLEX TYPE; THERMOPLASTIC NYLON MATERIAL; IVORY COLOR; 6-20R CONFIGURATION; 3 WIRE(S); INDUSTRIAL, SPECIFICATION, EXTRA HEAVY DUTY GRADE; UL 498, CSA C22.2, NOM 057 APPROVAL; 250 V VOLTAGE RATING; 20 AMPERE CURRENT RATING
MSDS Form Number *
Material Nylon;Thermoplastic Nylon
Model 5462
Mounting Wallbox
NEMA Rating 6-20R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description IV REC DUP 2PO 3WI 20A250V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
Temperature Rating -40 to +60 DEG C
Type Duplex Outlet;Straight Blade;Duplex
UNSPSC 39121406
UPC 07847781937
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 250;250 V
Wire Size 14-10
Wiring Back, Side
