LEV 5466-C

EB PLUG 2PO 3WI 6-20P 20A250V.

Page Loading...
LEVITON MFG CO.
EB PLUG 2PO 3WI 6-20P 20A250V.

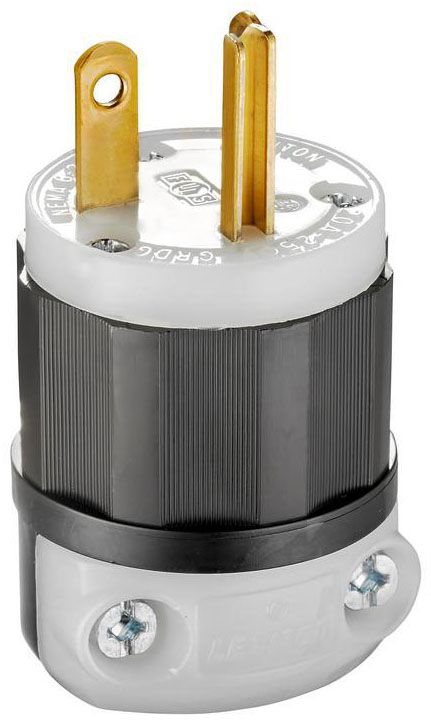

Mouse over image to zoom, click to enlarge

Description:
EB PLUG 2PO 3WI 6-20P 20A250V.

UPC:  07847779600

Part Number: 5466-C

UNSPSC: 39121402

Status:  UNKNOWN

Retail Price:  $36.94 / EA
Your Price:  $21.54 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5466-C
Additional Information Temperature Rating -40 to 60 Deg C
Amperage Rating 20 A
Application Industrial
Approval UL 498, CSA C22.2, NOM 057
Assembly Screws Zinc Plated Steel
Base Price 0.0000
Blades Contacts Material Solid Brass
Brand Name Leviton
Catalog Number 5466-C
Color Black/White
Commerce Sector Construction Materials
Commodity Code 51300
Commodity Description Plugs,Conn,Inlets,Outlets,Lampholdr
Configuration 6-20P
Constructional Feature Impact/Sunlight/Chemical Resistant
Cord Size 0.245 to 0.7 Inch
CountryOfOrigin MX
Current Rating 20 Amp
DDCATEGORY 574
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)
Families 574
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
Grade Industrial
Ground Type Grounding
Image Location * Image
Industry ELX
InvoiceDescription EB PLUG 2PO 3WI 6-20P 20A250V.;BLK PLUG-N6-20P
Item Number 79600
Long Description STRAIGHT BLADE PLUG, POLARIZED TYPE; IMPACT MODIFIED NYLON (BODY), THERMOPLASTIC (BACK COVER), SOLID BRASS (BLADE), ZINC PLATED STEEL (ASSEMBLY SCREW) MATERIAL; BLACK/WHITE COLOR; 6-20P CONFIGURATION; 3 WIRE(S); INDUSTRIAL GRADE
MSDS Form Number *
Material Super Tough Nylon (Body);Impact Modified Nylon (Body), Thermoplastic (Back Cover), Solid Brass (Blade), Zinc Plated Steel (Assembly Screw)
Model 5466
Mounting Cable
NEMA Rating 6-20P
Noun *
Number Of Poles 2
Number Of Wires 3
Product Description EB PLUG 2PO 3WI 6-20P 20A250V.
Product Keywords WEBREADY
Product Name Electrical plugs
ProductLine LEV
Replacement Parts Material Thermoplastic (Back Cover);Nylon (Wire Module, Cord-Clamp, Clamp Insert);Brass (Terminal Screws)
Size 1.53 Dia x 1.98 H IN
Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399);UL Fed Spec WC-596 (File E13393)
Sub Brand Black & White
Type Straight Blade Plug;Polarized
UNSPSC 39121402
UPC 07847779600
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 250 V;250 Volt
Wire Size 18-10 AWG (Terminal Accommodation);.250-.685 IN (Cord Grip Range)

Resources

CatalogNumber 5466-C
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1
