LEV 5601-2E

15A 120 277V SP DEC SW BLK

Page Loading...
LEVITON MFG CO.
15A 120 277V SP DEC SW BLK

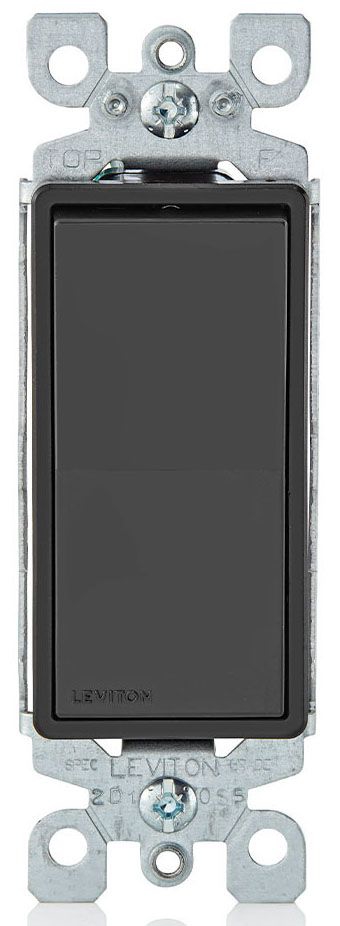

Mouse over image to zoom, click to enlarge

Description:
15A 120 277V SP DEC SW BLK

UPC:  07847705258

Part Number: 5601-2E

UNSPSC: 39122226

Status:  UNKNOWN

Retail Price:  $14.21 / EA
Your Price:  $4.55 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5601-2E
Actuator Rocker
Additional Information Power Rating 1/2 HP at 120 Volt, 2 HP at 240/277 Volt; Includes Ground Screw; Applicable Standard ISO 9001
Amperage Rating 15 AMP
Application Residential
Approval UL, CSA
Base Price 0.0000
Brand Name Decora [R]
Catalog Number 5601-2E
Color Black
Commerce Sector Construction Materials
Commodity Code 51100
Commodity Description General Purpose Switches
Connection Quickwired Push-In;Side Wired
Contact Rating 120/277 VAC;15 AMP
CountryOfOrigin US
Current Rating 15 Amp
DDCATEGORY 572
Directory CIS
Environmental Conditions Flammability (Rated UL 94 V-2)
Families 572
Family Description General Purpose Switches
Image Location * Image
Industry ELX
InvoiceDescription 15A 120 277V SP DEC SW BLK;SP BLK 15A SWITCH
Item Number 05258
Long Description ROCKER SWITCH, STANDARD ROCKER, GROUNDING TYPE; THERMOPLASTIC (BODY/ACTUATOR), STEEL (STRAP) MATERIAL; 1.4 INCH WIDTH X 4.2 INCH HEIGHT SIZE; BLACK COLOR; 1-POLE OPERATION TYPE; UL, CSA APPROVAL; RESIDENTIAL APPLICATION; 120/277 VOLT AC VOLTAGE RATING
MSDS Form Number *
Material Thermoplastic;Thermoplastic (Body/Actuator), Steel (Strap)
Model 5601
Mounting Wallplate
Noun *
Number Of Poles 1
Operating Temperature -40 to +120 DEG C
Operation Type 1-Pole
Product Description 15A 120 277V SP DEC SW BLK
Product Keywords WEBREADY
Product Name Rocker switch
ProductLine LEV
Size 4.200 H x 1.399 W x 1.453 D IN;1.4 Inch Width x 4.2 Inch Height
Special Features Grounding, Switch Frame Shields Against Dust and Fits in Wallplate to Prevent Rocker Binding, Terminal Screws Accept Up to No 12 AWG Copper or Copper-Clad Wire, Quickwire Push-In Terminals Accept No 14 AWG Solid Copper Wire Only, Sturdy Construction for Long Service Life, Full-Rated Current Capacity with Tungsten, Fluorescent or Resistive Loads, Motor Capacity is 80% of Switch Rating, Complements Every DTcor, Limited Two-Year Warranty, Made in USA
Standard UL Listed (E-7458);CSA Certified (LR-3413);NOM Certified (057)
Type Rocker Switch;Quiet;Standard Rocker, Grounding
UNSPSC 39122226
UPC 07847705258
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120/277 VAC;120/277 Volt AC
Wall Plate Included No
Wiring Quickwire Push-In, Side

Resources

CatalogNumber 5601-2E
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
