LEV 5624-2W

WH SW DEC 4W B/S-WIRED 20A120/277VAC.

Page Loading...
LEVITON MFG CO.
WH SW DEC 4W B/S-WIRED 20A120/277VAC.

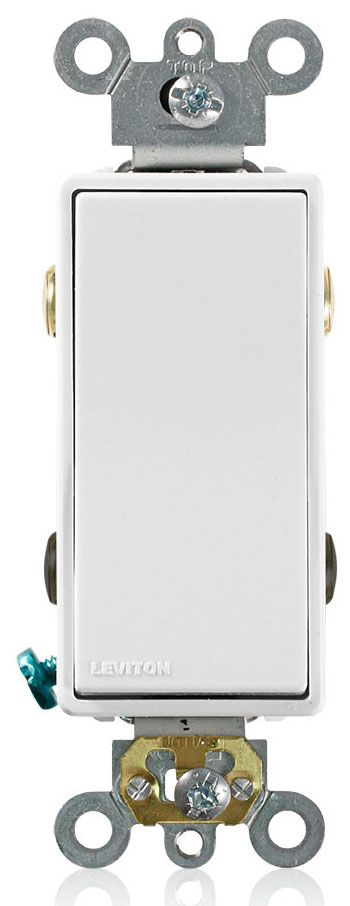

Mouse over image to zoom, click to enlarge

Description:
WH SW DEC 4W B/S-WIRED 20A120/277VAC.

UPC:  07847751938

Part Number: 5624-2W

UNSPSC: 39122226

Status:  UNKNOWN

Retail Price:  $90.32 / EA
Your Price:  $33.12 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5624-2W
Actuator Rocker
Additional Information Power Rating 1 HP at 120 V, 2 HP at 240 V; Strap Material Steel; Actuator Material Thermoplastic; Wire Size 14 to 10 AWG (Back), 14 to 12 AWG (Side); Operating Temperature Rating -40 to 65 Deg C
Amperage Rating 20 AMP
Application Commercial;Commercial, Specification Grade
Approval UL 20, CSA C22.2, NOM 057
Base Price 0.0000
Brand Name Decora Plus
Catalog Number 5624-2W
Color White
Commerce Sector Construction Materials
Commodity Code 51100
Commodity Description General Purpose Switches
Connection Back Wired;Side Wired
Contact Rating 120/277 VAC;20 AMP
CountryOfOrigin MX
Current Rating 20 Ampere
DDCATEGORY 572
Directory CIS
Environmental Conditions Flammability (Rated UL 94 V-2)
Families 572
Family Description General Purpose Switches
Image Location * Image
Industry ELX
InvoiceDescription WH SW DEC 4W B/S-WIRED 20A120/277VAC.;4WAY WHT 20A SWITCH
Item Number 51938
Long Description ROCKER SWITCH, STANDARD ROCKER TYPE; IMPACT RESISTANT THERMOPLASTIC MATERIAL; 1.3 INCH W X 1.6 INCH D X 4.06 INCH H SIZE; WHITE COLOR; 4-WAY OPERATION TYPE; UL 20, CSA C22.2, NOM 057 APPROVAL; COMMERCIAL, SPECIFICATION GRADE APPLICATION
MSDS Form Number *
Material Thermoplastic;Impact Resistant Thermoplastic
Model Series 5624
Mounting Box
Noun *
Number Of Poles 4-Way
Operating Temperature -40 to +120 DEG C
Operation Type 4-Way
Product Description WH SW DEC 4W B/S-WIRED 20A120/277VAC.
Product Keywords WEBREADY
Product Name Rocker switch
ProductLine LEV
Replacement Parts Material Thermoplastic (Actuator);Steel (Strap)
Size 46 H x 1.76 W x 1.60 D IN;1.3 Inch W x 1.6 Inch D x 4.06 Inch H
Standard UL Listed (E-7458);CSA Certified (LR 3413);NOM Certified (057);Federal Specification (WS-896)
Type Rocker Switch;Standard Rocker
UNSPSC 39122226
UPC 07847751938
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120/277 VAC
Wall Plate Included No
Wiring Side, Back

Resources

CatalogNumber 5624-2W
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
