LEV 5634-E

EB COMBI DEC 2SW SP 15A120/277VAC.

Page Loading...
LEVITON MFG CO.
EB COMBI DEC 2SW SP 15A120/277VAC.

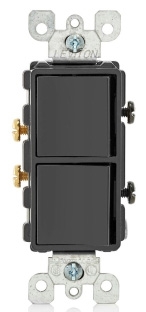

Mouse over image to zoom, click to enlarge

Description:
EB COMBI DEC 2SW SP 15A120/277VAC.

UPC:  07847702498

Part Number: 5634-E

UNSPSC: 39122231

Status:  UNKNOWN

Retail Price:  $50.68 / EA
Log In for Pricing



Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5634-E
Actuator Rocker
Additional Information POWER RATING 1/2 HP AT 120 V, 2 HP AT 240 TO 277 V
Amperage Rating 15 AMP
Application Commercial
Approval UL, CSA
Brand Name Decora[R]
Catalog Number 5634-E
Color Black
Commerce Sector Construction Materials
Commodity Code 51600
Commodity Description Combination Devices
Connection Side Wired
Contact Rating 120/277 VAC;15 AMP
CountryOfOrigin MX
DDCATEGORY 577
Directory CIS
Environmental Conditions Flammability (Rated UL 94 V-2)
Families 577
Family Description Combination Devices
Image Location * Image
Industry ELX
InvoiceDescription EB COMBI DEC 2SW SP 15A120/277VAC.;DECORA COMBO DEVICE
Item Number 02498
Long Description COMBINATION SWITCH, DECORATOR TYPE; THERMOPLASTIC MATERIAL; BLACK COLOR; UL, CSA APPROVAL; COMMERCIAL APPLICATION; SIDE WIRING; NO WALL PLATE INCLUDED; 120/277 VOLT AC 15 AMP 1-POLE WITH GROUNDING SWITCH 1 TYPE
MSDS Form Number *
Material Thermoplastic
Mounting Wallplate
Noun *
Number Of Poles 1/3-Way
Operating Temperature -40 to +120 DEG C
Product Description EB COMBI DEC 2SW SP 15A120/277VAC.
Product Keywords WEBREADY
Product Name Combination device switch
ProductLine LEV
Size 4.20 H x 1.31 W x 16 D IN
Special Features Elegant Decora Styling Provides Multiple Control in a Single Gang Wallbox, Impact Resistant, Common Shunted Internally to all Switches, Limited Two Year Warranty, Grounding, Made in Mexico
Standard UL Listed (E-7458);CSA Certified (LR-3413);NOM Certified (057)
Switch 1 Type 120/277 Volt AC 15 Amp 1-Pole with Grounding
Switch 2 Type 120/277 Volt AC 15 Amp 1-Pole with Grounding
Type Dual Rocker;Decorator
UNSPSC 39122231
UPC 07847702498
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120/277 VAC
Wall Plate Included No
Wiring Side
