LEV 5640-W

WH COMBI DEC 2SW 3W 20A120/277VAC

Page Loading...
LEVITON MFG CO.

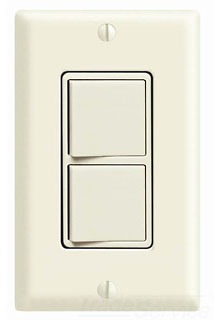

WH COMBI DEC 2SW 3W 20A120/277VAC

Mouse over image to zoom, click to enlarge

Description:
WH COMBI DEC 2SW 3W 20A120/277VAC

UPC:  07847788472

Part Number: 5640-W

UNSPSC: 39122231

Status:  UNKNOWN

Retail Price:  $86.12 / EA
Log In for Pricing



Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5640-W
Actuator Rocker
Additional Information Actuator Material Thermoplastic; Strap Material Steel; Power Rating 1 HP at 120 V, 2 HP at 240 to 277 V
Amperage Rating 20 AMP
Application Commercial;Residential, Commercial
Approval UL, CSA
Brand Name Decora[R]
Catalog Number 5640-W
Color White
Commerce Sector Construction Materials
Commodity Code 51600
Commodity Description Combination Devices
Connection Side Wired
Contact Rating 120/277 VAC;20 AMP
CountryOfOrigin MX
DDCATEGORY 577
Directory CIS
Environmental Conditions Flammability (Rated UL 94 V-2)
Families 577
Family Description Combination Devices
Image Location * Image
Industry ELX
InvoiceDescription WH COMBI DEC 2SW 3W 20A120/277VAC;WHT DECORA COMBO
Item Number 88472
Long Description COMBINATION SWITCH, DECORATOR TYPE; THERMOPLASTIC MATERIAL; WHITE COLOR; UL, CSA APPROVAL; RESIDENTIAL, COMMERCIAL APPLICATION; SIDE WIRING; YES WALL PLATE INCLUDED; 120/277 VAC 20 AMPERE 3-WAY WITH GROUNDING SWITCH 1 TYPE
MSDS Form Number *
Material Thermoplastic
Model 5640
Mounting Wallplate
Noun *
Number Of Poles 3-Way
Operating Temperature -40 to +120 DEG C
Product Description WH COMBI DEC 2SW 3W 20A120/277VAC
Product Keywords WEBREADY
Product Name Combination device switch
ProductLine LEV
Size 4.20 H x 1.31 W x 16 D IN
Special Features Elegant Decora Styling Provides Multiple Control in a Single Gang Wallbox, Impact Resistant, Common Shunted Internally to all Switches, Limited Two Year Warranty, Grounding, Made in Mexico
Standard UL Listed (E-7458);CSA Certified (LR-3413);NOM Certified (057)
Switch 1 Type 120/277 VAC 20 Ampere 3-Way with Grounding
Switch 2 Type 120/277 VAC 20 Ampere 3-Way with Grounding
Type Dual Rocker;Decorator
UNSPSC 39122231
UPC 07847788472
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120/277 VAC
Wall Plate Included Yes
Wiring Side
