LEV 5661-I

IV REC SGL 2PO 3WI 15A250V

Page Loading...
LEVITON MFG CO.
IV REC SGL 2PO 3WI 15A250V

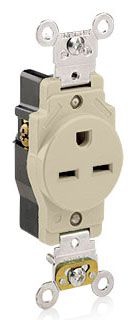

Mouse over image to zoom, click to enlarge

Description:
IV REC SGL 2PO 3WI 15A250V

UPC:  07847777236

Part Number: 5661-I

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $36.64 / EA
Your Price:  $13.03 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5661-I
Additional Information Applicable Standard ANSI C73, NEMA WD-6; Power Rating 1-1/2 HP; Contact Material Brass; Strap Material Zinc Plated Steel; Temperature Rating -40 to 60 Deg C
Amperage Rating 15 A
Application Commercial
Approval UL 498, CSA C22.2, NOM 057
Base Price 0.0000
Brand Name Leviton
Catalog Number 5661-I
Color Ivory
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 6-15R
Connection Back and Side Wired
Constructional Feature Impact Resistant
CountryOfOrigin MX
Current Rating 15 Ampere
DDCATEGORY 573
Dielectric Strength 2000 (Min.) V
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Description Receptacles & Surge Protectors
Grade Industrial, Specification, Heavy Duty
Ground Type Grounding
Image Location * Image
Industry ELX
InvoiceDescription 615R SINGL IND GRD RECEP IV;IV SGL RCPT-NEMA6-15R
Item Number 77236
Long Description STRAIGHT BLADE RECEPTACLE, SINGLE TYPE; THERMOPLASTIC NYLON MATERIAL; IVORY COLOR; 6-15R CONFIGURATION; 3 WIRE(S); INDUSTRIAL, SPECIFICATION, HEAVY DUTY GRADE; UL 498, CSA C22.2, NOM 057 APPROVAL; 250 V VOLTAGE RATING; 15 AMPERE CURRENT RATING; GROUNDING
MSDS Form Number *
Material Thermoplastic;Thermoplastic Nylon
Model 5661
Mounting Wall Box
NEMA Rating 6-15R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description IV REC SGL 2PO 3WI 15A250V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Size 46 H x 1.31 W x 16 D IN
Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
Temperature Rating -40 to +60 DEG C
Type Straight Blade;Single Outlet;Single
UNSPSC 39121406
UPC 07847777236
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 250 V
Wire Size 14-10 AWG
Wiring Back, Side

Resources

CatalogNumber 5661-I
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1
