LEV 5691-2W

WH SW DEC SP 15A120/277VAC.

Page Loading...
LEVITON MFG CO.
WH SW DEC SP 15A120/277VAC.

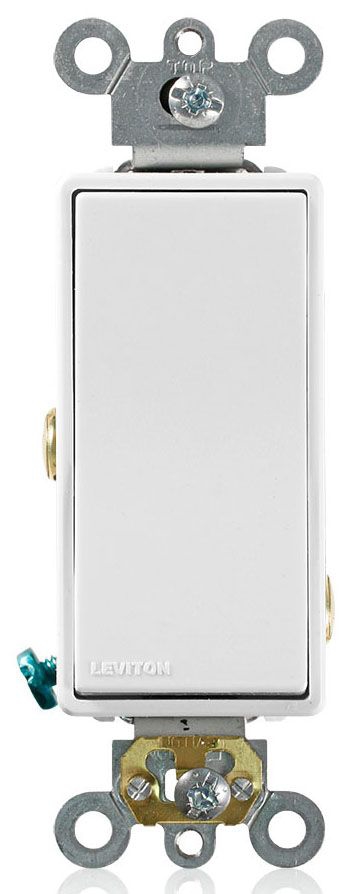

Mouse over image to zoom, click to enlarge

Description:
WH SW DEC SP 15A120/277VAC.

UPC:  07847778956

Part Number: 5691-2W

UNSPSC: 39122226

Status:  UNKNOWN

Retail Price:  $17.31 / EA
Your Price:  $7.62 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5691-2W
Actuator Rocker
Additional Information Wire Size 14 to 10 AWG (Back), 14 to 12 AWG (Side); Power Rating 1/2 HP at 120 Volt, 2 HP at 240 Volt; Temperature Rating -40 to 65 Deg C; Flammability Rating UL 94V-2; Applicable Standard NEMA WD-1/WD-6
Amperage Rating 15 AMP
Application Commercial;Specification Grade, Commercial
Approval UL 20, CSA C22.2, NOM 057
Base Price 0.0000
Brand Name Decora Plus
Catalog Number 5691-2W
Color White
Commerce Sector Construction Materials
Commodity Code 51100
Commodity Description General Purpose Switches
Connection Back Wired;Side Wired
Contact Rating 120/277 VAC;15 AMP
CountryOfOrigin MX
Current Rating 15 Amp
DDCATEGORY 572
Directory CIS
Environmental Conditions Flammability (Rated UL 94 V-2)
Families 572
Family Description General Purpose Switches
Image Location * Image
Industry ELX
InvoiceDescription WH SW DEC SP 15A120/277VAC.;SP WHT 15A SWITCH
Item Number 78956
Long Description ROCKER SWITCH, STANDARD ROCKER, SELF-GROUNDING TYPE; THERMOPLASTIC MATERIAL; 1.3 INCH WIDTH X 4.06 INCH HEIGHT SIZE; WHITE COLOR; 1-POLE OPERATION TYPE; UL 20, CSA C22.2, NOM 057 APPROVAL; SPECIFICATION GRADE, COMMERCIAL APPLICATION
MSDS Form Number *
Material Thermoplastic
Model 5691
Mounting Box
Noun *
Number Of Poles 1
Operating Temperature -40 to +120 DEG C
Operation Type 1-Pole
Product Description WH SW DEC SP 15A120/277VAC.
Product Keywords WEBREADY
Product Name Rocker switch
ProductLine LEV
Replacement Parts Material Thermoplastic (Actuator);Steel (Strap)
Size 46 H x 1.76 W x 1.42 D IN;1.3 Inch Width x 4.06 Inch Height
Standard UL Listed (E-7458);CSA Certified (LR 3413);NOM Certified (057);Federal Specification (WS-896)
Type Rocker Switch;Standard Rocker, Self-Grounding
UNSPSC 39122226
UPC 07847778956
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120/277 VAC;120/277 Volt AC
Wall Plate Included No
Wiring Back, Side

Resources

CatalogNumber 5691-2W
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
