LEV 5801-T

LA REC SGL 2PO 3WI 5-20R 20A125V

Page Loading...
LEVITON MFG CO.
LA REC SGL 2PO 3WI 5-20R 20A125V

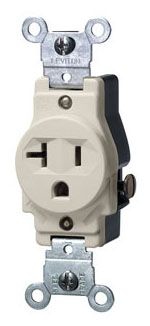

Mouse over image to zoom, click to enlarge

Description:
LA REC SGL 2PO 3WI 5-20R 20A125V

UPC:  07847727124

Part Number: 5801-T

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $9.46 / EA
Your Price:  $4.91 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5801-T
Additional Information STRAP MATERIAL ZINC PLATED STEEL; APPLICABLE STANDARD ANSI, NEMA WD 2, NEMA WD 6; OPERATING TEMPERATURE -40 TO 60 DEG C
Amperage Rating 20 A
Application Commercial
Approval UL, CSA C22.2
Base Price 0.0000
Catalog Number 5801-T
Color Light Almond
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 5-20R
Connection Side Wired
CountryOfOrigin MX
Current Rating 20 Amp
DDCATEGORY 573
Depth 16 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Description Receptacles & Surge Protectors
Grade Commercial, Specification
Ground Type Self-Grounding
Image Location * Image
Industry ELX
InvoiceDescription LA REC SGL 2PO 3WI 5-20R 20A125V;20A SGL RECEPT
Item Number 27124
Long Description STRAIGHT BLADE RECEPTACLE, SINGLE TYPE; NYLON (BODY/FACE) MATERIAL; LIGHT ALMOND COLOR; 5-20R CONFIGURATION; 3 WIRE(S); COMMERCIAL, SPECIFICATION GRADE; UL, CSA C22.2 APPROVAL; 125 VOLT VOLTAGE RATING; 20 AMP CURRENT RATING; SELF-GROUNDING; 2 POLE(S)
MSDS Form Number *
Material Nylon;Nylon (Body/Face)
Mounting Wallbox
NEMA Rating 5-20R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description LA REC SGL 2PO 3WI 5-20R 20A125V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-2 and WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
Temperature Rating -40 to +60 DEG C
Type Single Outlet;Straight Blade;Single
UNSPSC 39121406
UPC 07847727124
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125;125 Volt
Wire Size 14-10
Wiring Side

Resources

CatalogNumber 5801-T
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
