LEV 5801-W

WH REC SGL 2PO 3WI 5-20R 20A125V

Page Loading...
LEVITON MFG CO.
WH REC SGL 2PO 3WI 5-20R 20A125V

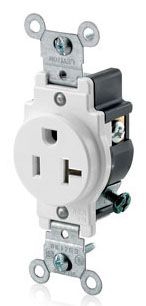

Mouse over image to zoom, click to enlarge

Description:
WH REC SGL 2PO 3WI 5-20R 20A125V

UPC:  07847724920

Part Number: 5801-W

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $9.83 / EA
Your Price:  $5.10 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 5801-W
Additional Information Power Rating 1 HP; Wire Size 14 to 10 AWG; Strap Material Zinc Plated Steel; Temperature Rating -40 to 60 Deg C; Applicable Standard UL 94 V-2, UL Federal Specification WC-596, ANSI C-73, NOM 057, NEMA WD-2 and WD-6, ISO 9001
Amperage Rating 20 A
Application Commercial
Approval UL 498, CSA C22.2
Base Price 0.0000
Catalog Number 5801-W
Color White
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration NEMA 5-20R
Connection Side Wired
Constructional Feature Tamper Resistant
CountryOfOrigin MX
Current Rating 20 Amp
DDCATEGORY 573
Depth 16 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Description Receptacles & Surge Protectors
Grade Commercial Specification
Ground Type Grounding
Image Location * Image
Industry ELX
InvoiceDescription WH REC SGL 2PO 3WI 5-20R 20A125V;WHT SGL RCPT-N5-20R
Item Number 24920
Long Description STRAIGHT BLADE RECEPTACLE, SINGLE, SMOOTH FACE TYPE; NYLON (BODY/FACE) MATERIAL; WHITE COLOR; NEMA 5-20R CONFIGURATION; 3 WIRE(S); COMMERCIAL SPECIFICATION GRADE; UL 498, CSA C22.2 APPROVAL; 125 VOLT AC VOLTAGE RATING; 20 AMP CURRENT RATING; GROUNDING
MSDS Form Number *
Material Nylon;Nylon (Body/Face)
Model 5801
Mounting Wallbox
NEMA Rating 5-20R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description WH REC SGL 2PO 3WI 5-20R 20A125V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-2 and WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
Temperature Rating -40 to +60 DEG C
Type Single Outlet;Straight Blade;Single, Smooth Face
UNSPSC 39121406
UPC 07847724920
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125;125 Volt AC
Wire Size 14-10
Wiring Side

Resources

CatalogNumber 5801-W
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
