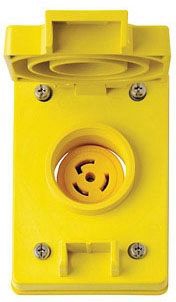

LEVITON MFG CO.
YL WGRD REC SGL 2PO3WI L6-20R CVR20A250V

Mouse over image to zoom, click to enlarge

Description:
YL WGRD REC SGL 2PO3WI L6-20R CVR20A250V

UPC:  07847705669

Part Number: 67W48

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $135.13 / EA
Your Price:  $112.24 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 67W48
Additional Information Overall Dimension 3.13 Inch L x 4.63 Inch H; Wire Size 14 to 8 AWG; Application Industrial Grade; Applicable Standard ANSI C-73, Federal Specification W-C 596
Amperage Rating 20 A
Application Industrial
Approval UL, CSA C22.2
Base Price 0.0000
Brand Name Leviton
Catalog Number 67W48
Color Yellow
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration L6-20R
Connection Back Wired;Side Wired
CountryOfOrigin MX
Cover Type Water Tight Flip Lid
Current Rating 20 Ampere
DDCATEGORY 573
Dielectric Strength 2000 (Min.) V
Directory CIS
Environmental Conditions Flammability (Rated V-0 per UL94)
Families 573
Family Description Receptacles & Surge Protectors
Ground Type Grounding
Image Location * Image
Industry ELX
InvoiceDescription L6-20R CR RECEP WITH COVER;CR WDL 20A 250V 1G RCPT
Item Number 05669
Long Description LOCKING FLIP LID RECEPTACLE, SINGLE TYPE; NYLON MATERIAL; YELLOW COLOR; L6-20R CONFIGURATION; 3 WIRE(S); UL, CSA C22.2 APPROVAL; 250 VAC VOLTAGE RATING; 20 AMPERE CURRENT RATING; WATER TIGHT FLIP LID COVER TYPE; GROUNDING; 2 POLE(S)
MSDS Form Number *
Material Nylon
Mounting Box
NEMA Rating L6-20R
Noun *
Number Of Poles 2
Number Of Wires 3
Product Description YL WGRD REC SGL 2PO3WI L6-20R CVR20A250V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Size 4.63 H x 3.13 W IN
Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
Sub Brand Wetguard
Temperature Rating -40 to +60 DEG C
Type Single Locking Receptacle with Watertight Cover;Single
UNSPSC 39121406
UPC 07847705669
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 250 V;250 VAC
Wire Size 14-8 AWG
