LEV 7310-B

EB REC LOCK 3PO 3WI NON-NEMA 20A125/250V

Page Loading...
LEVITON MFG CO.

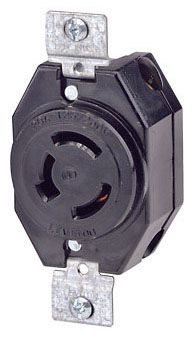

EB REC LOCK 3PO 3WI NON-NEMA 20A125/250V

Mouse over image to zoom, click to enlarge

Description:
EB REC LOCK 3PO 3WI NON-NEMA 20A125/250V

UPC:  07847782161

Part Number: 7310-B

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $73.15 / EA
Your Price:  $36.61 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 7310-B
Additional Information Applicable Standard ANSI C-73, NEMA WD-6; Operating Temperature -40 to 60 Deg C; Application Industrial
Amperage Rating 20 A
Application Commercial
Approval UL 498, CSA C22.2, NOM 057
Base Price 0.0000
Catalog Number 7310-B
Color Black
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration Non-NEMA Locking
Connection Back Wired;Side Wired
Constructional Feature Impact Resistant, Chemical Resistant
CountryOfOrigin MX
Current Rating 20 Ampere
DDCATEGORY 573
Depth 1.43 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Description Receptacles & Surge Protectors
Ground Type Non-Grounding
Image Location * Image
Industry ELX
InvoiceDescription EB REC LOCK 3PO 3WI NON-NEMA 20A125/250V;LKG RCPT-3W20A125V/250V
Item Number 82161
Long Description LOCKING RECEPTACLE, SINGLE LOCKING TYPE; NYLON (FACE/BASE) MATERIAL; BLACK COLOR; NON-NEMA LOCKING CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2, NOM 057 APPROVAL; 125/250 V VOLTAGE RATING; FLUSH MOUNTING; 20 AMPERE CURRENT RATING; NON-GROUNDING; 3 POLE(S)
MSDS Form Number *
Material Nylon;Nylon (Face/Base)
Model 7310
Mounting Box;Flush
NEMA Rating Non-Nema
Noun *
Number Of Poles 3
Number Of Wires 3
Product Description EB REC LOCK 3PO 3WI NON-NEMA 20A125/250V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No. 42 (File LR-406);NEMA (WD-1, WD-6);NOM Certified (057);UL Listed 498 (File E13399)
Temperature Rating -40 to +60 DEG C
Type Locking Single Receptacle;Single Locking
UNSPSC 39121406
UPC 07847782161
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125;250;125/250 V
Wire Size 18-10
Wiring Back, Side
