LEV 7411-C

EB PLUG LOCK 4PO4WI NO NEMA 20A120/208V

Page Loading...
LEVITON MFG CO.
EB PLUG LOCK 4PO4WI NO NEMA 20A120/208V

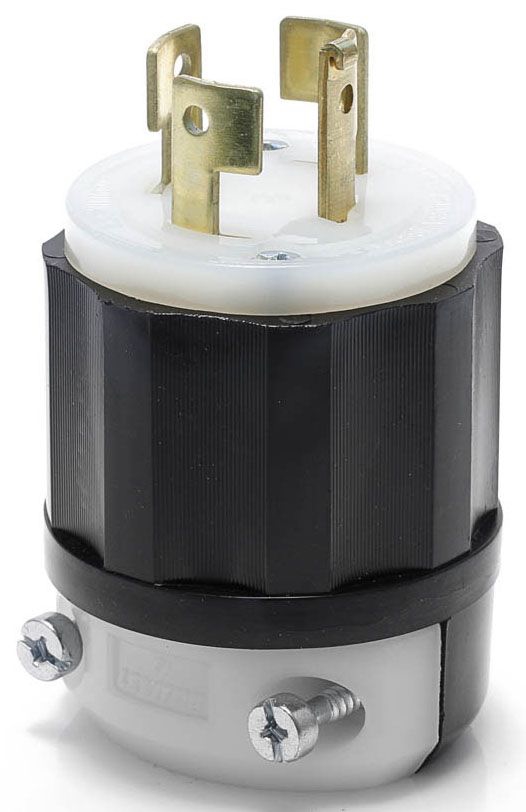

Mouse over image to zoom, click to enlarge

Description:
EB PLUG LOCK 4PO4WI NO NEMA 20A120/208V

UPC:  07847782969

Part Number: 7411-C

UNSPSC: 39121402

Status:  UNKNOWN

Retail Price:  $46.88 / EA
Your Price:  $36.05 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 7411-C
Additional Information Wire Size 14 to 10 AWG
Amperage Rating 20 A
Application Industrial
Approval UL 498, CSA C22.2, NOM 057
Assembly Screws Zinc Plated Steel
Base Price 0.0000
Blades Contacts Material Solid Brass
Brand Name Leviton;Black & White[R]
Catalog Number 7411-C
Color Black/White;Black, White
Commerce Sector Construction Materials
Commodity Code 51300
Commodity Description Plugs,Conn,Inlets,Outlets,Lampholdr
Configuration Non-NEMA Locking
Constructional Feature Abrasion Resistant, Chemical Resistant, Impact Resistant
Cord Size 0.595 to 0.895 Inch
CountryOfOrigin MX
Current Rating 20 Ampere
DDCATEGORY 574
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)
Families 574
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
Ground Type Non-Grounding
Image Location * Image
Industry ELX
InvoiceDescription EB PLUG LOCK 4PO4WI NO NEMA 20A120/208V;LKG PLUG-4W20A250/10A600
Item Number 82969
Long Description LOCKING PLUG, NON-POLARIZED TYPE; SUPER TOUGH NYLON (BODY), SOLID BRASS (BLADE/CONTACT) MATERIAL; BLACK, WHITE COLOR; NON-NEMA LOCKING CONFIGURATION; 4 WIRE(S); UL 498, CSA C22.2, NOM 057 APPROVAL; 120/208 V STAR 3-PHASE VOLTAGE RATING
MSDS Form Number *
Material Super Tough Nylon (Body);Super Tough Nylon (Body), Solid Brass (Blade/Contact)
Mounting Cable
Noun *
Number Of Poles 4
Number Of Wires 4
Phase 3
Product Description EB PLUG LOCK 4PO4WI NO NEMA 20A120/208V
Product Keywords WEBREADY
Product Name Electrical plugs
ProductLine LEV
Replacement Parts Material Thermoplastic (Back Cover);Nylon (Wire Module, Cord-Clamp, Clamp Insert);Brass (Terminal Screws)
Size 2.22 Dia x 2.70 H IN
Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA Certified (File LR-406);UL Listed 498 (File E13393)
Sub Brand Black & White
Type Locking Plug;Non-Polarized
UNSPSC 39121402
UPC 07847782969
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120/208 V;120/208 V Star 3-Phase
Wire Size 18-10 AWG (Terminal Accommodation);.560-.775 IN (Cord Grip Range)

Resources

CatalogNumber 7411-C
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1
