| Manufacturer Name | LEVITON MFG CO. |
| MfgPartNo | 7565-C |
| Additional Information | Applicable Standard ANSI C-73, NEMA WD-6; Operating Temperature -40 to 60 Deg C; Material Thermoplastic (Back Cover), Solid Brass (Blade/Contact), Zinc Plated Steel (Assembly Screw); Application Industrial |
| Amperage Rating | 10/15 A |
| Application | Industrial |
| Approval | UL 498, CSA C22.2, NOM 057 |
| Assembly Screws | Zinc Plated Steel |
| Base Price | 0.0000 |
| Blades Contacts Material | Solid Brass |
| Brand Name | Leviton;Black & White[R] |
| Catalog Number | 7565-C |
| Color | Black/White;Black, White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | Non-NEMA Locking |
| Constructional Feature | Impact Resistant, Abrasion Resistant, Chemical Resistant |
| Cord Size | 0.245 to 0.7 Inch |
| CountryOfOrigin | MX |
| Current Rating | 15 Ampere at 125 V, 10 Ampere at 250 V |
| DDCATEGORY | 574 |
| Directory | CIS |
| Environmental Conditions | Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C) |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Non-Grounding |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | EB NOCSA CONN LCK 3PO3WI NONEMA15A125V;LKG CONN-3P3W10A250V |
| Item Number | 82013 |

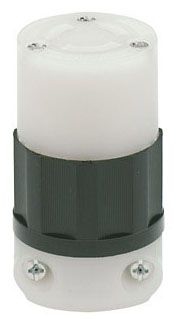

| Long Description | LOCKING CONNECTOR, NON-POLARIZED TYPE; NYLON MATERIAL; BLACK, WHITE COLOR; NON-NEMA LOCKING CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2, NOM 057 APPROVAL; 125/250 V VOLTAGE RATING; 15 AMPERE AT 125 V, 10 AMPERE AT 250 V CURRENT RATING; NON-GROUNDING |
| MSDS Form Number | * |
| Material | Super Tough Nylon (Body);Nylon |
| Model | 7565 |
| Mounting | Cable |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Product Description | EB NOCSA CONN LCK 3PO3WI NONEMA15A125V |
| Product Keywords | WEBREADY |
| Product Name | Electrical plugs |
| ProductLine | LEV |
| Replacement Parts Material | Thermoplastic (Back Cover);Nylon (Wire Module, Cord-Clamp, Clamp Insert);Brass (Terminal Screws) |
| Size | 2.22 Dia x 3.78 H IN |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);UL Listed (498);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13393) |
| Sub Brand | Black & White |
| Type | Locking Connector;Non-Polarized |
| UNSPSC | 39121402 |
| UPC | 07847782013 |
| Vendor Name | LEVITON MFG CO. |
| Vendor Number | 078477 |
| Vendor Short Name | LEV |
| Voltage Rating | 125/250 V |
| Wire Size | 18-10 AWG (Terminal Accommodation);.250-.685 IN (Cord Grip Range) |
