LEV 8300

BX.REC DUP HG 2PO 3WI 20A125V

Page Loading...
LEVITON MFG CO.
BX.REC DUP HG 2PO 3WI 20A125V

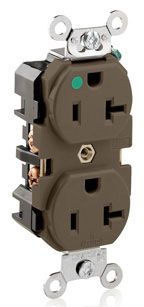

Mouse over image to zoom, click to enlarge

Description:
BX.REC DUP HG 2PO 3WI 20A125V

UPC:  07847781861

Part Number: 8300

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $65.33 / EA
Your Price:  $23.23 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 8300
Additional Information Applicable Standard ANSI C73, NEMA WD-6; Power Rating 1 HP; Contact Material Nickel Plated Brass; Strap Material Nickel Plated Brass; Temperature Rating -40 to 60 Deg C
Amperage Rating 20 A
Application Commercial
Approval UL 498, CSA C22.2, NOM 057
Base Price 0.0000
Catalog Number 8300
Color Brown
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 5-20R
Connection Back and Side Wired
Constructional Feature Impact Resistant
CountryOfOrigin MX
Current Rating 20 Ampere
DDCATEGORY 573
Depth 1.11 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Color Brown
Family Description Receptacles & Surge Protectors
Grade Hospital, Extra Heavy Duty
Ground Type Grounding
Height 46 in
Image Location * Image
Industry ELX
InvoiceDescription BX.REC DUP HG 2PO 3WI 20A125V;20A 125V HOSP RECP
Item Number 81861
Long Description STRAIGHT BLADE RECEPTACLE, DUPLEX TYPE; NYLON MATERIAL; BROWN COLOR; 5-20R CONFIGURATION; 3 WIRE(S); HOSPITAL, EXTRA HEAVY DUTY GRADE; UL 498, CSA C22.2, NOM 057 APPROVAL; 125 V VOLTAGE RATING; 20 AMPERE CURRENT RATING; GROUNDING; 2 POLE(S)
MSDS Form Number *
Material Nylon
Material Quality Thermoplastic
Model 8300
Mounting Wallbox
NEMA Rating 5-20R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description BX.REC DUP HG 2PO 3WI 20A125V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);CSA Certified;NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed;UL Listed 498 HG (File E13399)
Temperature Rating Maximum 140 F
Temperature Rating Minimum -40 F
Type Duplex Outlet;Straight Blade;Duplex
UNSPSC 39121406
UPC 07847781861
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125;125 V
Width 1.53 in
Wire Size 14-10
Wiring Back, Side

Resources

CatalogNumber 8300
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
