LEV BR15-W

REC DUP WH BACK/SD-WIRE FEDSPEC 15A125V

Page Loading...
LEVITON MFG CO.
REC DUP WH BACK/SD-WIRE FEDSPEC 15A125V

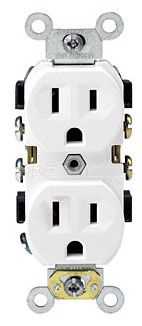

Mouse over image to zoom, click to enlarge

Description:
REC DUP WH BACK/SD-WIRE FEDSPEC 15A125V

UPC:  07847781977

Part Number: BR15-W

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $8.72 / EA
Your Price:  $5.27 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo BR15-W
Additional Information Applicable Standard ANSI C73, NEMA WD-6; Power Rating 1/2 HP; Material Brass (Contact), Zinc Plated Steel (Strap); Temperature Rating -40 to 60 Deg C
Amperage Rating 15 A
Application Commercial
Approval UL 498, CSA C22.2, NOM
Base Price 0.0000
Catalog Number BR15-W
Color White
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 5-15R
Connection Back and Side Wired
Constructional Feature Impact Resistant
CountryOfOrigin MX
Current Rating 15 Ampere
DDCATEGORY 573
Depth 19 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Description Receptacles & Surge Protectors
Grade Commercial
Ground Type Self-Grounding
Image Location * Image
Industry ELX
InvoiceDescription REC DUP WH BACK/SD-WIRE FEDSPEC 15A125V;WHT DPLX NEMA5-15R
Item Number 81977
Long Description STRAIGHT BLADE RECEPTACLE, DUPLEX, NARROW TYPE; NYLON (BODY/FACE), ZINC PLATED STEEL (YOKE) MATERIAL; WHITE COLOR; 5-15R CONFIGURATION; 3 WIRE(S); COMMERCIAL GRADE; UL 498, CSA C22.2, NOM APPROVAL; 125 V VOLTAGE RATING; 15 AMPERE CURRENT RATING
MSDS Form Number *
Material Nylon;Nylon (Body/Face), Zinc Plated Steel (Yoke)
Model Series BR15
Mounting Wallbox
NEMA Rating 5-15R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description REC DUP WH BACK/SD-WIRE FEDSPEC 15A125V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-2, WD-1, WD-6);NOM Certified (057);UL Listed 498 (File E13399)
Temperature Rating -40 to +60 DEG C
Type Duplex Outlet;Straight Blade;Duplex, Narrow
UNSPSC 39121406
UPC 07847781977
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125;125 V
Wire Size 14-10
Wiring Back, Side

Resources

CatalogNumber BR15-W
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
