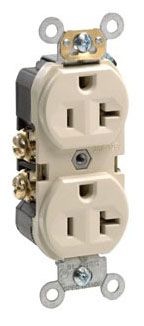

LEV BR20-I

REC DUP IV BACK/SD-WIRE FEDSPEC 20A125V

Page Loading...
LEVITON MFG CO.
REC DUP IV BACK/SD-WIRE FEDSPEC 20A125V

Mouse over image to zoom, click to enlarge

Description:
REC DUP IV BACK/SD-WIRE FEDSPEC 20A125V

UPC:  07847781980

Part Number: BR20-I

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $11.57 / EA
Your Price:  $7.00 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo BR20-I
Additional Information Applicable Standard ANSI C73, NEMA WD-6; Power Rating 1 HP; Material Brass (Contact), Zinc Plated Steel (Strap); Temperature Rating -40 to 60 Deg C
Amperage Rating 20 A
Application Commercial
Approval UL 498, CSA C22.2, NOM
Base Price 0.0000
Brand Name Leviton
Catalog Number BR20-I
Color Ivory
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 5-20R
Connection Back and Side Wired
Constructional Feature Impact Resistant
CountryOfOrigin US
Current Rating 20 Ampere
DDCATEGORY 573
Dielectric Strength 2000 (Min.) V
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Description Receptacles & Surge Protectors
Grade Commercial
Ground Type Self-Grounding
Image Location * Image
Industry ELX
InvoiceDescription SELF GRND DUPL RECEP;IV DPLX RCPT NEMA5-20R
Item Number 81980
Long Description STRAIGHT BLADE RECEPTACLE, DUPLEX, NARROW TYPE; NYLON (BODY/FACE), ZINC PLATED STEEL (YOKE) MATERIAL; IVORY COLOR; 5-20R CONFIGURATION; 3 WIRE(S); COMMERCIAL GRADE; UL 498, CSA C22.2, NOM APPROVAL; 125 V VOLTAGE RATING; 20 AMPERE CURRENT RATING
MSDS Form Number *
Material Nylon;Nylon (Body/Face), Zinc Plated Steel (Yoke)
Model Series BR20
Mounting Wall Box
NEMA Rating 5-20R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description REC DUP IV BACK/SD-WIRE FEDSPEC 20A125V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Size 46 H x 1.56 W x 19 D IN
Standard NEMA (WD-2, WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399)
Temperature Rating -40 to +60 DEG C
Type Straight Blade;Duplex Outlet;Duplex, Narrow
UNSPSC 39121406
UPC 07847781980
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125 V
Wire Size 14-10 AWG
Wiring Back, Side

Resources

CatalogNumber BR20-I
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1
