LEV CR20-I

REC DUP IV SIDE-WIRE FEDSPEC 20A125V

Page Loading...
LEVITON MFG CO.
REC DUP IV SIDE-WIRE FEDSPEC 20A125V

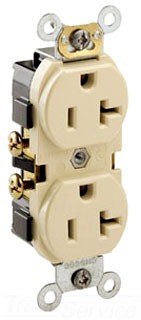

Mouse over image to zoom, click to enlarge

Description:
REC DUP IV SIDE-WIRE FEDSPEC 20A125V

UPC:  07847781543

Part Number: CR20-I

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $4.41 / EA
Log In for Pricing



Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo CR20-I
Additional Information Power Rating 1 HP; Wire Size 14 to 10 AWG; Strap Material Zinc Plated Steel; Temperature Rating -40 to 60 Deg C; Applicable Standard UL 94 V-2, ANSI C-73, NOM 057, NEMA WD-2 and WD-6, ISO 9001
Amperage Rating 20 A
Application Commercial
Approval UL 498, CSA C22.2
Catalog Number CR20-I
Color Ivory
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration NEMA 5-20R
Connection Side Wired
Constructional Feature Tamper Resistant
CountryOfOrigin US
Current Rating 20 Amp
DDCATEGORY 573
Decorative Color Ivory
Depth 19 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Description Receptacles & Surge Protectors
Grade Heavy Duty Commercial Specification
Ground Type Self-Grounding
Height 46 in
Image Location * Image
Industry ELX
InvoiceDescription IV REC DUP INDENT 2PO3WI 5-20R 20A125V;IV DPLX RCPT NEMA5-20R
Item Number 81543
Long Description STRAIGHT BLADE RECEPTACLE, DUPLEX, INDENTED FACE TYPE; THERMOPLASTIC (BODY/FACE) MATERIAL; IVORY COLOR; NEMA 5-20R CONFIGURATION; 3 WIRE(S); HEAVY DUTY COMMERCIAL SPECIFICATION GRADE; UL 498, CSA C22.2 APPROVAL; 125 VOLT AC VOLTAGE RATING
MSDS Form Number *
Material Thermoplastic (Body/Face)
Material Quality Thermoplastic
Model CR20
Mounting Wallbox
NEMA Rating 5-20R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description REC DUP IV SIDE-WIRE FEDSPEC 20A125V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Listed 498 (File E13399)
Temperature Rating Maximum 140 F
Temperature Rating Minimum -40 F
Type Duplex Outlet;Straight Blade;Duplex, Indented Face
UNSPSC 39121406
UPC 07847781543
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125;125 Volt AC
Width 1.56 in
Wire Size 14-10
Wiring Side

Resources

CatalogNumber CR20-I
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
