| Manufacturer Name | LEVITON MFG CO. |
| MfgPartNo | CS120-2W |
| Action | SP |
| Additional Information | Wire Size 14 to 12 AWG; Torque Rating 12 to 14 Inch-Pound; Operating Temperature Rating -40 to 65 Deg C |
| Amperage Rating | 20 A |
| Application | Commercial;Commercial, Government Building, Mall, Hospital and Health Care Facility, Office Building, School, College, University, Cultural Institution |
| Approval | UL 20, CSA C22.2, NOM 057, UL Federal Spec WS896E, ANSI C-73, NEMA WD-1/WD-6 |
| Base Price | 0.0000 |
| Catalog Number | CS120-2W |
| Color | White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51100 |
| Commodity Description | General Purpose Switches |
| Connection | Side Wired |
| CountryOfOrigin | US |
| Current Rating | 20 Amp |
| DDCATEGORY | 572 |
| Depth | 0.92 in |
| Directory | CIS |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| Families | 572 |
| Family Color | White |
| Family Description | General Purpose Switches |
| Height | 46 in |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | WH SW STD TGL SP 20A120/277VAC;SP 20A 277V WHT SW |
| Item Number | 81574 |
| Long Description | AC SWITCH, TOGGLE, GROUNDING TYPE; THERMOPLASTIC (BODY), POLYCARBONATE (TOGGLE), SILVER CADMIUM (CONTACT), NYLON (COVER), STEEL (STRAP) MATERIAL; 1.31 INCH WIDTH X 4.06 INCH HEIGHT SIZE; WHITE COLOR; 1-POLE OPERATION TYPE |
| MSDS Form Number | * |
| Material | Thermoplastic (Body), Polycarbonate (Toggle), Silver Cadmium (Contact), Nylon (Cover), Steel (Strap) |
| Model | CS120 |
| Mounting | Box |
| Noun | * |
| Number Of Poles | 1 |
| Operating Temperature Maximum | 248 F |
| Operating Temperature Minimum | -40 F |
| Operation Type | 1-Pole |
| Power Rating | 1 HP at 120 Volt AC, 2 HP at 240 to 277 Volt AC |
| Product Description | WH SW STD TGL SP 20A120/277VAC |
| Product Keywords | WEBREADY |

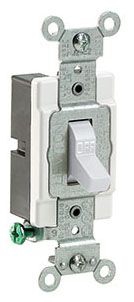

| Product Name | Toggle switch |
| ProductLine | LEV |
| Size | 1.31 Inch Width x 4.06 Inch Height |
| Standard | ANSI (C-73);CSA C22.2 No. 111 (File 152105);NEMA (WD-1 and WD-6);NOM Certified (057);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20) |
| Switch Type | Toggle |
| Type | Toggle Switch;Toggle, Grounding |
| UNSPSC | 39122211 |
| UPC | 07847781574 |
| Vendor Name | LEVITON MFG CO. |
| Vendor Number | 078477 |
| Vendor Short Name | LEV |
| Voltage Rating | 120/277 VAC;120/277 Volt AC |
| Width | 1.31 in |
| Wiring | Side |
