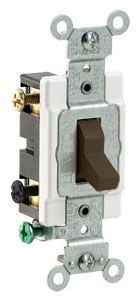

LEV CS220-2

20A 120/277V 2P COMM SIDE WIRE TOGL BR

Page Loading...
LEVITON MFG CO.
20A 120/277V 2P COMM SIDE WIRE TOGL BR

Mouse over image to zoom, click to enlarge

Description:
20A 120/277V 2P COMM SIDE WIRE TOGL BR

UPC:  07847781575

Part Number: CS220-2

UNSPSC: 39122211

Status:  UNKNOWN

Retail Price:  $26.27 / EA
Your Price:  $17.88 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo CS220-2
Action DP
Additional Information Operating Temperature -40 to 65 Deg C; Grounding Type Self Grounding; Strap Material Steel; Contact Material Silver-Cadmium; Wire Size 14 to 12 AWG (Side)
Amperage Rating 20 A
Application Commercial;Commercial, Specification Grade
Approval UL 20, CSA C22.2, NOM 057
Base Price 0.0000
Catalog Number CS220-2
Color Brown
Commerce Sector Construction Materials
Commodity Code 51100
Commodity Description General Purpose Switches
Connection Side Wired
CountryOfOrigin MX
Current Rating 20 Ampere
DDCATEGORY 572
Depth 0.92 in
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 572
Family Color Brown
Family Description General Purpose Switches
Height 46 in
Image Location * Image
Industry ELX
InvoiceDescription 20A 120/277V 2P COMM SIDE WIRE TOGL BR;DP 20A 277V BRN SW
Item Number 81575
Long Description AC SWITCH, TOGGLE TYPE; THERMOPLASTIC (BODY), POLYCARBONATE (TOGGLE) MATERIAL; 1.31 INCH W X 4.06 INCH H SIZE; BROWN COLOR; DOUBLE POLE OPERATION TYPE; UL 20, CSA C22.2, NOM 057 APPROVAL; COMMERCIAL, SPECIFICATION GRADE APPLICATION
MSDS Form Number *
Material Thermoplastic (Body), Polycarbonate (Toggle)
Model CS220
Mounting Box
Noun *
Number Of Poles 2
Operating Temperature Maximum 248 F
Operating Temperature Minimum -40 F
Operation Type Double Pole
Power Rating 1 HP at 120 V, 2 HP at 240 V
Product Description 20A 120/277V 2P COMM SIDE WIRE TOGL BR
Product Keywords WEBREADY
Product Name Toggle switch
ProductLine LEV
Size 1.31 Inch W x 4.06 Inch H
Standard ANSI (C-73);CSA C22.2 No. 111 (File 152105);NEMA (WD-1 and WD-6);NOM Certified (057);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)
Switch Type Toggle
Type Toggle Switch;Toggle
UNSPSC 39122211
UPC 07847781575
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120/277 VAC
Wall Plate Included No
Width 1.31 in
Wiring Side

Resources

CatalogNumber CS220-2
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
