LEV CS315-2I

15A 120/277V 3W COMM SIDE WIRE TOGL IV

Page Loading...
LEVITON MFG CO.
15A 120/277V 3W COMM SIDE WIRE TOGL IV

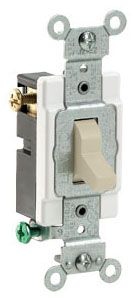

Mouse over image to zoom, click to enlarge

Description:
15A 120/277V 3W COMM SIDE WIRE TOGL IV

UPC:  07847781559

Part Number: CS315-2I

UNSPSC: 39122211

Status:  UNKNOWN

Retail Price:  $10.18 / EA
Your Price:  $7.24 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo CS315-2I
Additional Information Operating Temperature -40 to 65 Deg C; Grounding Type Self Grounding; Strap Material Steel; Contact Material Silver-Cadmium; Wire Size 14 to 12 AWG (Side)
Amperage Rating 15 A
Application Commercial;Commercial, Specification Grade
Approval UL 20, CSA C22.2, NOM 057
Base Price 0.0000
Catalog Number CS315-2I
Color Ivory
Commerce Sector Construction Materials
Commodity Code 51100
Commodity Description General Purpose Switches
Connection Side Wired
CountryOfOrigin MX
Current Rating 15 Ampere
DDCATEGORY 572
Decorative Color Ivory
Depth 0.92 in
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 572
Family Description General Purpose Switches
Height 46 in
Image Location * Image
Industry ELX
InvoiceDescription 15A 120/277V 3W COMM SIDE WIRE TOGL IV;3WAY 15A 277V IV SW
Item Number 81559
Long Description AC SWITCH, TOGGLE TYPE; THERMOPLASTIC (BODY), POLYCARBONATE (TOGGLE) MATERIAL; 1.31 INCH W X 4.06 INCH H SIZE; IVORY COLOR; 3-WAY OPERATION TYPE; UL 20, CSA C22.2, NOM 057 APPROVAL; COMMERCIAL, SPECIFICATION GRADE APPLICATION; 120/277 VAC VOLTAGE RATING
MSDS Form Number *
Material Thermoplastic (Body), Polycarbonate (Toggle)
Model CS315
Mounting Box
Noun *
Number Of Poles 3-way
Operating Temperature Maximum 248 F
Operating Temperature Minimum -40 F
Operation Type 3-Way
Power Rating 1/2 HP at 120 V, 2 HP at 240 V
Product Description 15A 120/277V 3W COMM SIDE WIRE TOGL IV
Product Keywords WEBREADY
Product Name Toggle switch
ProductLine LEV
Size 1.31 Inch W x 4.06 Inch H
Standard ANSI (C-73);CSA C22.2 No. 111 (File 152105);NEMA (WD-1 and WD-6);NOM Certified (057);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)
Switch Type Toggle
Type Toggle Switch;Toggle
UNSPSC 39122211
UPC 07847781559
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120/277 VAC
Wall Plate Included No
Width 1.31 in
Wiring Side

Resources

CatalogNumber CS315-2I
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
