LEV CS420-2I

CP IV SW STD TGL 4W 20A120/277VAC

Page Loading...
LEVITON MFG CO.
CP IV SW STD TGL 4W 20A120/277VAC

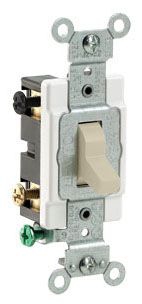

Mouse over image to zoom, click to enlarge

Description:
CP IV SW STD TGL 4W 20A120/277VAC

UPC:  07847781585

Part Number: CS420-2I

UNSPSC: 39122211

Status:  UNKNOWN

Retail Price:  $44.02 / EA
Your Price:  $24.95 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo CS420-2I
Additional Information OPERATING TEMPERATURE -40 TO 65 DEG C
Amperage Rating 20 A
Application Commercial;Commercial, Specification Grade
Approval UL 20, CSA C22.2, NOM 057
Base Price 0.0000
Catalog Number CS420-2I
Color Ivory
Commerce Sector Construction Materials
Commodity Code 51100
Commodity Description General Purpose Switches
Connection Side Wired
CountryOfOrigin MX
Current Rating 20 Amp
DDCATEGORY 572
Decorative Color Ivory
Depth 0.92 in
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 572
Family Description General Purpose Switches
Height 46 in
Image Location * Image
Industry ELX
InvoiceDescription CP IV SW STD TGL 4W 20A120/277VAC;4WAY 20A 277V IV SW
Item Number 81585
Long Description AC SWITCH, TOGGLE TYPE; THERMOPLASTIC (BODY), POLYCARBONATE (TOGGLE) MATERIAL; 1.31 INCH WIDTH X 4.06 INCH HEIGHT SIZE; IVORY COLOR; 4-WAY OPERATION TYPE; UL 20, CSA C22.2, NOM 057 APPROVAL; COMMERCIAL, SPECIFICATION GRADE APPLICATION
MSDS Form Number *
Material Thermoplastic (Body), Polycarbonate (Toggle)
Mounting Box
Noun *
Number Of Poles 4-way
Operating Temperature Maximum 248 F
Operating Temperature Minimum -40 F
Operation Type 4-Way
Power Rating 1 HP at 120 Volt AC, 2 HP at 240 Volt AC
Product Description CP IV SW STD TGL 4W 20A120/277VAC
Product Keywords WEBREADY
Product Name Toggle switch
ProductLine LEV
Size 1.31 Inch Width x 4.06 Inch Height
Standard ANSI (C-73);CSA C22.2 No. 111 (File 152105);NEMA (WD-1 and WD-6);NOM Certified (057);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)
Switch Type Toggle
Type Toggle Switch;Toggle
UNSPSC 39122211
UPC 07847781585
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120/277 VAC;120/277 Volt AC
Wall Plate Included No
Width 1.31 in
Wiring Side

Resources

CatalogNumber CS420-2I
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
