LEV CSB4-20I

CP IV SW TGL 4W 20A120/277VAC

Page Loading...
LEVITON MFG CO.
CP IV SW TGL 4W 20A120/277VAC

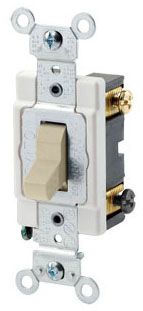

Mouse over image to zoom, click to enlarge

Description:
CP IV SW TGL 4W 20A120/277VAC

UPC:  07847781604

Part Number: CSB4-20I

UNSPSC: 39122211

Status:  UNKNOWN

Retail Price:  $65.24 / EA
Your Price:  $36.97 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo CSB4-20I
Additional Information OPERATING TEMPERATURE -40 TO 65 DEG C
Amperage Rating 20 A
Application Commercial;Commercial, Specification Grade
Approval UL 20, CSA C22.2, NOM 057
Base Price 0.0000
Catalog Number CSB4-20I
Color Ivory
Commerce Sector Construction Materials
Commodity Code 51100
Commodity Description General Purpose Switches
Connection Back Wired;Side Wired
CountryOfOrigin MX
Current Rating 20 Amp
DDCATEGORY 572
Decorative Color Ivory
Depth 1.47 in
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 572
Family Description General Purpose Switches
Height 46 in
Image Location * Image
Industry ELX
InvoiceDescription CP IV SW TGL 4W 20A120/277VAC;4WAY 20A 277 IV SW
Item Number 81604
Long Description AC SWITCH, TOGGLE TYPE; THERMOPLASTIC (BODY), POLYCARBONATE (TOGGLE) MATERIAL; 1.31 INCH WIDTH X 4.06 INCH HEIGHT SIZE; IVORY COLOR; 4-WAY OPERATION TYPE; UL 20, CSA C22.2, NOM 057 APPROVAL; COMMERCIAL, SPECIFICATION GRADE APPLICATION
MSDS Form Number *
Material Thermoplastic (Body), Polycarbonate (Toggle)
Mounting Box
Noun *
Number Of Poles 4-way
Operating Temperature Maximum 248 F
Operating Temperature Minimum -40 F
Operation Type 4-Way
Power Rating 1 HP at 120 Volt AC, 2 HP at 240 Volt AC
Product Description CP IV SW TGL 4W 20A120/277VAC
Product Keywords WEBREADY
Product Name Toggle switch
ProductLine LEV
Size 1.31 Inch Width x 4.06 Inch Height
Standard ANSI (C-73);CSA C22.2 No. 111 (File 152105);NEMA (WD-1 and WD-6);NOM Certified (057);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)
Switch Type Toggle
Type Toggle Switch;Toggle
UNSPSC 39122211
UPC 07847781604
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120/277 VAC;120/277 Volt AC
Wall Plate Included No
Width 1.31 in
Wiring Back, Side

Resources

CatalogNumber CSB4-20I
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
