LEV IPE04-1LZ

WH/IV/LA SLIDE DIM SP/3W LITE 400VA120V

Page Loading...
LEVITON MFG CO.

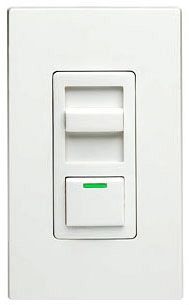

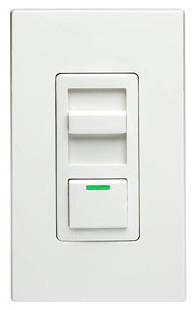

WH/IV/LA SLIDE DIM SP/3W LITE 400VA120V

Mouse over image to zoom, click to enlarge

Description:
WH/IV/LA SLIDE DIM SP/3W LITE 400VA120V

UPC:  07847728208

Part Number: IPE04-1LZ

UNSPSC: 39122206

Status:  UNKNOWN

Retail Price:  $104.91 / EA
Your Price:  $95.13 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo IPE04-1LZ
Additional Information WITH LED LOCATOR; OPERATING TEMPERATURE 0 TO 55 DEG C
Application Commercial
Approval UL, CSA, NOM
Base Price 0.0000
Brand Name Leviton;Decora[R], IllumaTech[R]
Catalog Number IPE04-1LZ
Commerce Sector Construction Materials
Commodity Code 74210
Commodity Description Lighting Dimmers
CountryOfOrigin CN
DDCATEGORY 2224
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 2224
Family Description Dimmer Switches & Systems
Finish White, Ivory, Light Almond
Frequency Rating 60 Hz
Image Location * Image
Industry ELX
InvoiceDescription ILLUMATECH ELEV LV DIMM;ILLUMATECH LV DIMMER
Item Number 28208
Load 400 VA;300 WATT
Load Rating 300 Watt, 400 Volt Amp
Load Type Electronic Low Voltage
Long Description DIMMER, WALL/SLIDE DIMMER TYPE; 2.12 INCH WIDTH X 0.38 INCH DEPTH X 4.15 INCH HEIGHT SIZE; WHITE, IVORY, LIGHT ALMOND FINISH; 1-POLE/3-WAY OPERATION TYPE; UL, CSA, NOM APPROVAL; 120 VOLT AC AT 60 HERTZ VOLTAGE RATING; 300 WATT, 400 VOLT AMP LOAD RATING
MSDS Form Number *
Mounting Wall
Noun *
Number Of Poles 1
Operating Temperature +32 to +130 DEG F
Operation Type 1-Pole/3-Way
Operator Type Preset On/Off Switch, Electromechanical
Product Description WH/IV/LA SLIDE DIM SP/3W LITE 400VA120V
Product Keywords WEBREADY
Product Name Dimmer switch
ProductLine LEV
Size 4.15 H x 2.12 W x 1.41 D IN;2.12 Inch Width x 0.38 Inch Depth x 4.15 Inch Height
Special Features 5 Years Limited Warranty, Made in China
Standard UL Listed (E-31373), CSA Certified (LR-3413)
Sub Brand IllumaTech;Decora
Type Electro-Mechanical;Wall/Slide Dimmer
UNSPSC 39122206
UPC 07847728208
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120 VAC;120 Volt AC at 60 Hertz
Wall Plate Type Decora
Wattage 320 W

Resources

CatalogNumber IPE04-1LZ
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1
