LEV IPX06-70Z

W/I/LA FLUO DIM 600VA277VAC MARKX W/PRST

Page Loading...
LEVITON MFG CO.
W/I/LA FLUO DIM 600VA277VAC MARKX W/PRST

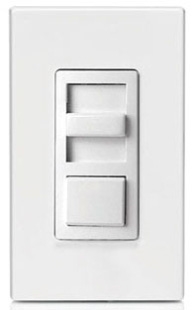

Mouse over image to zoom, click to enlarge

Description:
W/I/LA FLUO DIM 600VA277VAC MARKX W/PRST

UPC:  07847728212

Part Number: IPX06-70Z

UNSPSC: 39122206

Status:  UNKNOWN

Retail Price:  $105.93 / EA
Your Price:  $96.04 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo IPX06-70Z
Additional Information Operating Temperature 0 to 55 Deg C
Application Commercial;Commercial, Residential
Approval UL, CSA
Base Price 0.0000
Brand Name Leviton;Decora[R], IllumaTech[R]
Catalog Number IPX06-70Z
Commerce Sector Construction Materials
Commodity Code 74210
Commodity Description Lighting Dimmers
CountryOfOrigin CN
DDCATEGORY 2224
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 2224
Family Description Dimmer Switches & Systems
Finish White, Ivory, Light Almond
Image Location * Image
Industry ELX
InvoiceDescription ILLUMATEC MARK X DIM 277V 600W WHT IV LA;ILLUMATECH MARK X DMR
Item Number 28212
Load 600 VA
Load Rating 600 VA
Load Type Fluorescent
Long Description DIMMER, WALL DIMMER TYPE; 2.12 INCH W X 1.41 INCH D X 4.15 INCH H SIZE; WHITE, IVORY, LIGHT ALMOND FINISH; 1-POLE, 3-WAY, MULTI-LOCATION OPERATION TYPE; UL, CSA APPROVAL; COMMERCIAL, RESIDENTIAL APPLICATION; 277 VAC AT 60 HZ VOLTAGE RATING
MSDS Form Number *
Model IPX06
Mounting Wall
Noun *
Number Of Poles 1
Operating Temperature +32 to +130 DEG F
Operation Type 1-Pole, 3-Way, Multi-Location
Operator Type Slide, Electro Mechanical Preset On/Off Switch
Product Description W/I/LA FLUO DIM 600VA277VAC MARKX W/PRST
Product Keywords WEBREADY
Product Name Dimmer switch
ProductLine LEV
Size 2.12 Inch W x 1.41 Inch D x 4.15 Inch H
Special Features 5 Years Limited Warranty, Made in China
Standard UL Listed (E-31373), CSA Certified (LR-3413)
Sub Brand IllumaTech;Decora
Type Electro-Mechanical;Wall Dimmer
UNSPSC 39122206
UPC 07847728212
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 277 VAC;277 VAC at 60 Hz
Wall Plate Type Decora Plus Screwless, Standard Designer (Not Included)

Resources

CatalogNumber IPX06-70Z
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1
