LEV MS302-DSS

EB NON-REV MTR STRT SHORT TGL SW 30A600V

Page Loading...
LEVITON MFG CO.
EB NON-REV MTR STRT SHORT TGL SW 30A600V

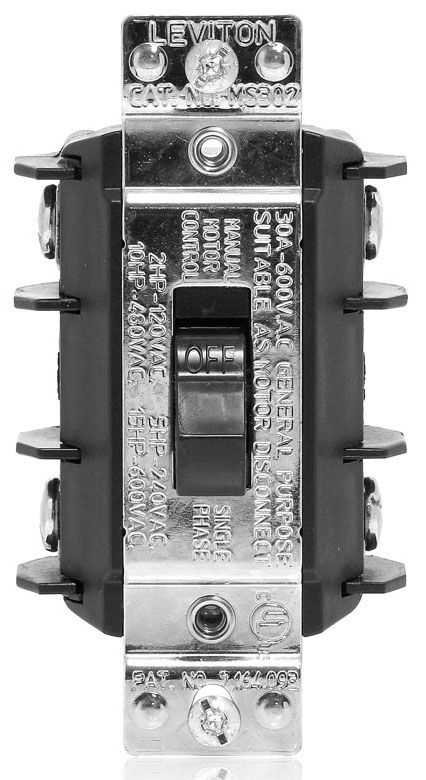

Mouse over image to zoom, click to enlarge

Description:
EB NON-REV MTR STRT SHORT TGL SW 30A600V

UPC:  07847737414

Part Number: MS302-DSS

UNSPSC: 39122211

Status:  UNKNOWN

Retail Price:  $44.84 / EA
Your Price:  $31.32 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo MS302-DSS
Action DP
Additional Information Wiring Back and Side; Handle Type Short Toggle; Grounding Type Non-Grounding; Strap Material Nickel Plated Brass; Contact Material 0.031 Inch Silver-Cadmium; Operating Temperature -40 to 60 Deg C; Application Industrial; Applicable Standard ANSI C-73, NEM
Amperage Rating 30 A
Application Commercial
Approval UL 508, CSA C22.2, NOM
Base Price 0.0000
Catalog Number MS302-DSS
Commerce Sector Construction Materials
Commodity Code 41510
Commodity Description Manual Motor Switches & Accessories
Connection Back Wired;Side Wired
CountryOfOrigin MX
Current Rating 30 Amp
DDCATEGORY 2122
Depth 2.15 in
Directory CIS
Environmental Conditions Flammability (Rated V-0 per UL94)
Families 2122
Family Description Manual Motor Switches & Accessories
HP At 120 V 2 HP
HP At 240 V 5 HP
HP At 480 V 10 HP
HP At 600 V 15 HP
Height 3.75 in
Image Location * Image
Industry ELX
InvoiceDescription EB NON-REV MTR STRT SHORT TGL SW 30A600V;MMS SH TOGGLE SW
Item Number 37414
Long Description MOTOR STARTER SWITCH, 1-PHASE TYPE; BLACK THERMOPLASTIC POLYESTER MATERIAL; 2.03 INCH WIDTH X 2.15 INCH DEPTH X 3.75 INCH HEIGHT SIZE; 2-POLE OPERATION TYPE; UL 508, CSA C22.2, NOM APPROVAL; 600 VOLT AC VOLTAGE RATING; 30 AMP CURRENT RATING
MSDS Form Number *
Material Black Thermoplastic Polyester
Model MS302
Noun *
Number Of Poles 2
Operating Temperature Maximum 140 F
Operating Temperature Minimum -40 F
Operation Type 2-Pole
Product Description EB NON-REV MTR STRT SHORT TGL SW 30A600V
Product Keywords WEBREADY
Product Name Toggle switch
ProductLine LEV
Size 2.03 Inch Width x 2.15 Inch Depth x 3.75 Inch Height
Standard ANSI (C-73);cUL per CSA C22.2 No. 111 (File E63969);NEMA (WD-1 & WD-6);NOM Certified (057);UL508 (File E63969)
Switch Type Toggle
Type Double-Pole AC Motor Starter Switch;Standard Toggle;1-Phase
UNSPSC 39122211
UPC 07847737414
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 600 VAC;600 Volt AC
Width 23 in

Resources

CatalogNumber MS302-DSS
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
