LEV MS603-BW

EB NON-REV MTR STRT FRONT WIRE 3PHASE

Page Loading...
LEVITON MFG CO.
EB NON-REV MTR STRT FRONT WIRE 3PHASE

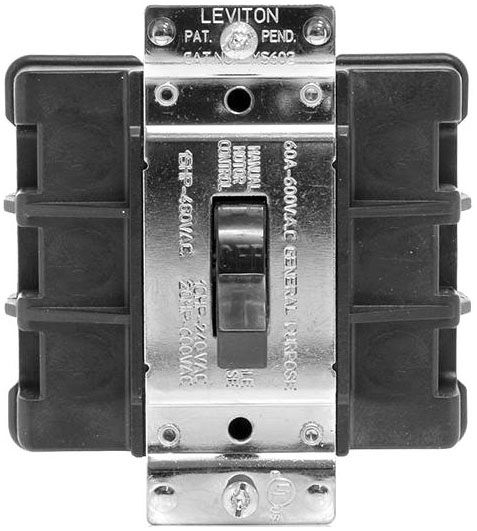

Mouse over image to zoom, click to enlarge

Description:
EB NON-REV MTR STRT FRONT WIRE 3PHASE

UPC:  07847707374

Part Number: MS603-BW

UNSPSC: 39122211

Status:  UNKNOWN

Retail Price:  $171.19 / EA
Your Price:  $119.59 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo MS603-BW
Action TPST
Additional Information Wiring Back; Handle Type Toggle; Grounding Type Non-Grounding; Strap Material Nickel Plated Brass; Contact Material 0.46 Inch Silver-Cadmium Oxide; Operating Temperature -40 to 60 Deg C; Application Industrial; Applicable Standard ANSI C-73, NEMA WD-1/6
Amperage Rating 60 A
Application Commercial
Approval UL 508, CSA C22.2, NOM
Base Price 0.0000
Catalog Number MS603-BW
Commerce Sector Construction Materials
Commodity Code 41510
Commodity Description Manual Motor Switches & Accessories
Connection Back Wired
CountryOfOrigin MX
Current Rating 60 Amp
DDCATEGORY 2122
Depth 2.67 in
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 2122
Family Description Manual Motor Switches & Accessories
HP At 240 V 10 HP
HP At 480 V 25 HP
HP At 600 V 30 HP
Height 3.75 in
Image Location * Image
Industry ELX
InvoiceDescription EB NON-REV MTR STRT FRONT WIRE 3PHASE;3PST 60A 600VAC SW
Item Number 07374
Long Description MOTOR STARTER SWITCH, 3-PHASE TYPE; BLACK THERMOPLASTIC POLYESTER MATERIAL; 3.43 INCH WIDTH X 1.71 INCH DEPTH X 3.75 INCH HEIGHT SIZE; 3-POLE OPERATION TYPE; UL 508, CSA C22.2, NOM APPROVAL; 600 VOLT AC VOLTAGE RATING; 60 AMP CURRENT RATING
MSDS Form Number *
Material Black Thermoplastic Polyester
Noun *
Number Of Poles 3
Operating Temperature Maximum 149 F
Operating Temperature Minimum -40 F
Operation Type 3-Pole
Product Description EB NON-REV MTR STRT FRONT WIRE 3PHASE
Product Keywords WEBREADY
Product Name Toggle switch
ProductLine LEV
Size 3.43 Inch Width x 1.71 Inch Depth x 3.75 Inch Height
Standard ANSI (C-73);cUL per CSA C22.2 No. 111 (File E63969);NEMA (WD-1 & WD-6);NOM Certified (057);UL508 (File E63969)
Switch Type Toggle
Type Double-Pole AC Motor Starter Switch;Standard Toggle;3-Phase
UNSPSC 39122211
UPC 07847707374
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 600 VAC;600 Volt AC
Width 3.43 in
