LEV N3302-DS

GY 3R METAL ENC W/AC MANU MTR STRT SW

Page Loading...
LEVITON MFG CO.

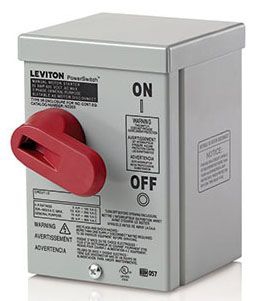

GY 3R METAL ENC W/AC MANU MTR STRT SW

Mouse over image to zoom, click to enlarge

Description:
GY 3R METAL ENC W/AC MANU MTR STRT SW

UPC:  07847737440

Part Number: N3302-DS

UNSPSC: 39122211

Status:  UNKNOWN

Retail Price:  $123.63 / EA
Your Price:  $73.72 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo N3302-DS
Action DPST
Additional Information Applicable Standard ANSI C-73, NEMA WD-1/6; Operating Temperature -40 to 60 Deg C; Wiring Side; Color Gray; Handle Type Toggle; Application Industrial; Grounding Type Grounding; Strap Material Nickel Plated Brass; Contact Material Silver-Cadmium
Amperage Rating 30 A
Application Commercial
Approval UL 508, CSA C22.2, NOM
Base Price 0.0000
Brand Name PowerSwitch[R]
Catalog Number N3302-DS
Commerce Sector Construction Materials
Commodity Code 41510
Commodity Description Manual Motor Switches & Accessories
Connection Back Wired;Side Wired
CountryOfOrigin MX
Current Rating 30 Ampere
DDCATEGORY 2122
Depth 5.42 in
Directory CIS
Enclosure PBT Polyester;NEMA 3R
Environmental Conditions Flammability (Rated V-0 per UL94)
Families 2122
Family Description Manual Motor Switches & Accessories
HP At 120 V 2 HP
HP At 240 V 5 HP
HP At 480 V 10 HP
HP At 600 V 15 HP
Height 6.15 in
Image Location * Image
Industry ELX
InvoiceDescription GY 3R METAL ENC W/AC MANU MTR STRT SW;30A N3R DP SW ENCL
Item Number 37440
Long Description MOTOR STARTER SWITCH, 1-PHASE TYPE; THERMOPLASTIC POLYESTER MATERIAL; 4.26 INCH W X 5.49 INCH D X 6.15 INCH H SIZE; 2-POLE OPERATION TYPE; UL 508, CSA C22.2, NOM APPROVAL; 600 VAC VOLTAGE RATING; NEMA 3R ENCLOSURE; 30 AMPERE CURRENT RATING
MSDS Form Number *
Material Thermoplastic Polyester
Noun *
Number Of Poles 2
Operating Temperature Maximum 140 F
Operating Temperature Minimum -40 F
Operation Type 2-Pole
Product Description GY 3R METAL ENC W/AC MANU MTR STRT SW
Product Keywords WEBREADY
Product Name Toggle switch
ProductLine LEV
Size 4.26 Inch W x 5.49 Inch D x 6.15 Inch H
Standard ANSI (C-73);cUL per CSA C22.2 No. 111 (File E63969);NEMA (WD-1 & WD-6);NOM Certified (057);UL508 (File E63969)
Switch Type Toggle
Type Enclosure with Double-Pole AC Motor Starter Switch;1-Phase
UNSPSC 39122211
UPC 07847737440
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 600 VAC
Width 4.26 in

Resources

CatalogNumber N3302-DS
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
