LEV ODC0S-I1W

WH PIR CEILING OCC SENS 360D 1000W120V

Page Loading...
LEVITON MFG CO.
WH PIR CEILING OCC SENS 360D 1000W120V

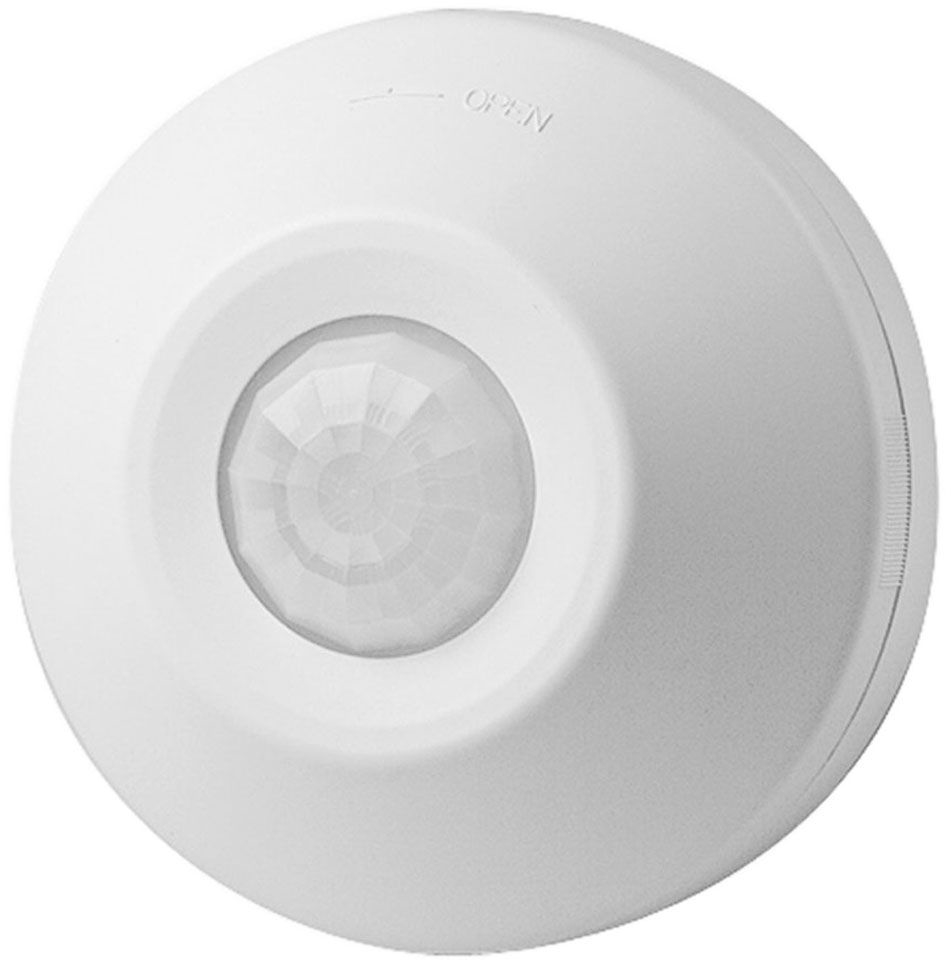

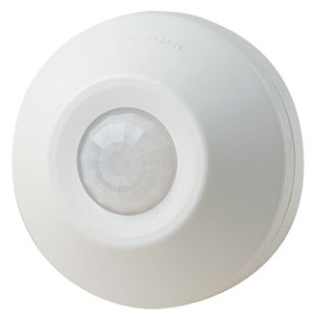

Mouse over image to zoom, click to enlarge

Description:
WH PIR CEILING OCC SENS 360D 1000W120V

UPC:  07847788188

Part Number: ODC0S-I1W

UNSPSC: 41111961

Status:  UNKNOWN

Retail Price:  $145.07 / EA
Your Price:  $115.62 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo ODC0S-I1W
Additional Information Wire Designation Line-Black, Neutral-White, Load-Blue; Operating Temperature Rating 32 to 122 Deg F; Power Consumption 1.4 Watt; Relative Humidity 20 to 90 Percent Non-Condensing; Applicable Standard FCC, Title 24
Application Commercial;Storage Area, Small Bathroom, Retrofit, Copy Room, Mop/Sink Closet, Small Space without Wall Switch
Approval UL, CSA, CEC
Area Coverage 530 Square Foot
Base Price 0.0000
Brand Name Leviton
Catalog Number ODC0S-I1W
Commerce Sector Construction Materials
Commodity Code 74310
Commodity Description Lighting Occupancy Sensors
CountryOfOrigin CN
DDCATEGORY 578
Directory CIS
Environmental Conditions Storage Temperature (-10 DEG C to +85 DEG C);Relative Humidity (20 to 90 PCT)
Families 578
Family Description Motion Sensing Devices
Field Of View 360 Degree
Finish White
Frequency Response 60 HZ
Image Location * Image
Industry ELX
InvoiceDescription WH PIR CEILING OCC SENS 360D 1000W120V;WHT CEILING SENSOR
Item Number 88188
Load Rating 1000 Watt (Incandescent), 1000 Volt Amp (Fluorescent), 1 HP at 120 Volt (Motor)
Load Type Incandescent/Fluorescent/Motor
Long Description OCCUPANCY SENSOR, SELF-CONTAINED, SENSOR WITH SWITCHING RELAY TYPE; 4.3 INCH DIAMETER X 2.15 INCH DEPTH SIZE; WHITE FINISH; UL, CSA, CEC APPROVAL
MSDS Form Number *
Model ODC0S-I
Mounting Ceiling
Noun *
Product Description WH PIR CEILING OCC SENS 360D 1000W120V
Product Keywords WEBREADY
Product Name Occupant sensor
ProductLine LEV
Sensing Distance 530 SQ-FT
Sensor Type Passive Infrared
Size 4.3 (Dia) x 2.15 H IN;4.3 Inch Diameter x 2.15 Inch Depth
Special Features Adjustable Delayed-OFF Time Setting Between 20 Seconds and 15 Minutes Allows Custom Adjustment for Maximum Savings, Segmented Fresnel Lens Contains 79 Segments for Optimum Sensitivity and Detection Performance, 5-Year Limited Warranty
Standard UL Listed;CSA Certified;Complies with CEC Title 24, Complies with FCC Regulations
Temperature Rating 0 to +50 DEG C
Time Delay 20 Second to 15 Minute
Type Passive Infrared;Self-Contained, Sensor with Switching Relay
UNSPSC 41111961
UPC 07847788188
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120 V;120 Volt AC 60 Hertz

Resources

CatalogNumber ODC0S-I1W
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1
