LEV ODS10-IDI

IV PIR OCC SENS WALL SW 180D 120/277VAC

Page Loading...
LEVITON MFG CO.

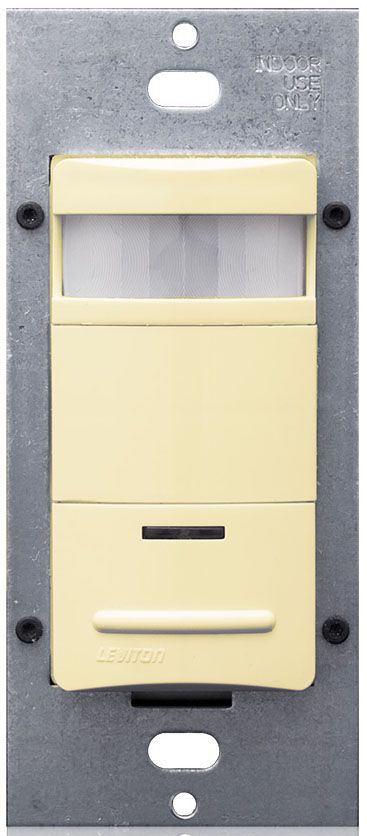

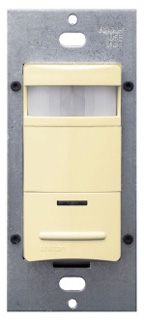

IV PIR OCC SENS WALL SW 180D 120/277VAC

Mouse over image to zoom, click to enlarge

Description:
IV PIR OCC SENS WALL SW 180D 120/277VAC

UPC:  07847701019

Part Number: ODS10-IDI

UNSPSC: 45111808

Status:  UNKNOWN

Retail Price:  $98.10 / EA
Your Price:  $78.19 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo ODS10-IDI
Additional Information Operating Temperature Rating 0 to 50 Deg C; Switching Type 1 Pole; Excludes Wall Plate; LED Color Red
Application Commercial;Small Office, Conference Room, Classroom, Lounge, Commercial Area
Approval UL, CSA, FCC, NOM
Area Coverage 2100 Sq Ft
Base Price 0.0000
Brand Name Leviton
Catalog Number ODS10-IDI
Commerce Sector Construction Materials
Commodity Code 74310
Commodity Description Lighting Occupancy Sensors
CountryOfOrigin CN
DDCATEGORY 578
Directory CIS
Environmental Conditions Operating Temperature (0 to +50 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing)
Families 578
Family Description Motion Sensing Devices
Field Of View 180 Degree
Finish Ivory
Frequency Rating 50/60 Hz
Image Location * Image
Industry ELX
InvoiceDescription IV PIR OCC SENS WALL SW 180D 120/277VAC;IV INFRA OCPCY SNSR
Item Number 01019
Load Rating 800 W at 120 VAC (Incandescent), 1200 VA at 120 VAC, 2700 VA at 277 V (Fluorescent), 1/4 HP at 120 VAC (Motor)
Load Type Incandescent/Fluorescent/Motor
Long Description OCCUPANCY SENSOR, MOTION DETECTOR TYPE; 1.75 INCH W X 1.85 INCH D X 4.06 INCH H SIZE; IVORY FINISH; UL, CSA, FCC, NOM APPROVAL; SMALL OFFICE, CONFERENCE ROOM, CLASSROOM, LOUNGE, COMMERCIAL AREA APPLICATION; 120/277 VAC AT 60 HZ VOLTAGE RATING
MSDS Form Number *
Model Series ODS10
Mounting Wall
Noun *
Power Consumption 100 @ 120V;250 @ 277V
Product Description IV PIR OCC SENS WALL SW 180D 120/277VAC
Product Keywords WEBREADY
Product Name Lighting controls
ProductLine LEV
Sensor Type Passive Infrared
Size 46 H x 1.75 W x 1.85 D IN;1.75 Inch W x 1.85 Inch D x 4.06 Inch H
Special Features Fits in Standard Wallbox and Replaces Single-Pole Wall Switch, 180 Field-Of-View Provides Approximately 195m2 of Coverage Suitable for Small Offices, Conference Rooms, Classrooms, Lounges and a Variety of Commercial Areas, Convenient Pushbutton Provides
Standard UL Listed;CSA Certified;CEC;Title 24;FCC Regulations;NOM
Sub Brand Decora
Supply Voltage 120/230/277 VAC
Time Delay 30 Sec to 30 Min
Type Occupancy Sensor;Single-Pole Switch;Motion Detector
UNSPSC 45111808
UPC 07847701019
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120/277 VAC at 60 Hz
