LEV ODS10-IDW

WH PIR OCC SENS WALL SW 180D 120/277VAC

Page Loading...
LEVITON MFG CO.
WH PIR OCC SENS WALL SW 180D 120/277VAC

Mouse over image to zoom, click to enlarge

Description:

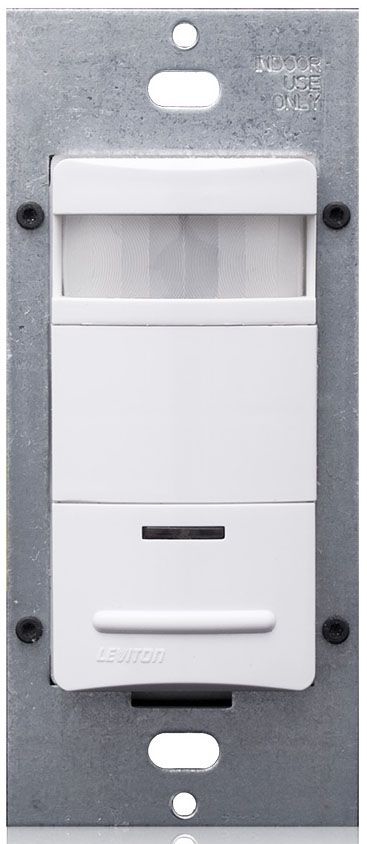

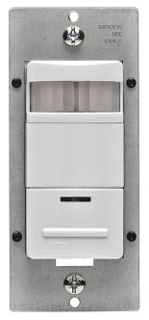

WH PIR OCC SENS WALL SW 180D 120/277VAC

UPC:  07847701018

Part Number: ODS10-IDW

UNSPSC: 45111808

Status:  UNKNOWN

Retail Price:  $87.31 / EA
Your Price:  $74.46 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo ODS10-IDW
Additional Information Temperature Rating 0 to 50 Deg C
Application Commercial
Approval UL, CUL
Area Coverage 2100 Square Foot
Base Price 0.0000
Brand Name Leviton
Catalog Number ODS10-IDW
Commerce Sector Construction Materials
Commodity Code 74310
Commodity Description Lighting Occupancy Sensors
CountryOfOrigin CN
DDCATEGORY 578
Directory CIS
Environmental Conditions Operating Temperature (0 to +50 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing)
Families 578
Family Description Motion Sensing Devices
Field Of View 180 Degree
Finish White
Frequency Rating 50/60 Hz
Image Location * Image
Industry ELX
InvoiceDescription 0NFR SW 10A DUAL VLT;INFR OCCPNCY SNSOR
Item Number 01018
Load Rating 800 Watt at 120 Volt AC (Incandescent), 1200 Volt Amp at 120 Volt (Incandescent), 2700 Volt Amp at 277 Volt AC at 60 Hertz (Incandescent), 1/4 HP at 120 Volt (Motor)
Load Type Incandescent
Long Description OCCUPANCY SENSOR, 1.75 INCH WIDTH X 1.85 INCH DEPTH X 4.06 INCH HEIGHT SIZE; WHITE FINISH; UL, CUL APPROVAL; COMMERCIAL APPLICATION; 120/277 VOLT AC AT 60 HERTZ VOLTAGE RATING; WALL MOUNTING
MSDS Form Number *
Model ODS10
Mounting Wall
Noun *
Power Consumption 100 @ 120V;250 @ 277V
Product Description WH PIR OCC SENS WALL SW 180D 120/277VAC
Product Keywords WEBREADY
Product Name Lighting controls
ProductLine LEV
Sensor Type Passive Infrared
Size 46 H x 1.75 W x 1.85 D IN;1.75 Inch Width x 1.85 Inch Depth x 4.06 Inch Height
Special Features Fits in Standard Wallbox and Replaces Single-Pole Wall Switch, 180 Field-Of-View Provides Approximately 195m2 of Coverage Suitable for Small Offices, Conference Rooms, Classrooms, Lounges and a Variety of Commercial Areas, Convenient Pushbutton Provides
Standard UL Listed;CSA Certified;CEC;Title 24;FCC Regulations;NOM
Sub Brand Decora
Supply Voltage 120/230/277 VAC
Time Delay 10/20/30 Minute
Type Occupancy Sensor;Single-Pole Switch
UNSPSC 45111808
UPC 07847701018
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120/277 Volt AC at 60 Hertz

Resources

CatalogNumber ODS10-IDW
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1
